9. Tighten the screws on the rail brackets on each rack rail in the back of the rack.
10. Extend the rails from the rack until they lock.
11. With a person on each side, lift the base unit and align the rack rails with the rail guides
mounted on the side of the base unit. Slide the base unit into the rack rails until you hear

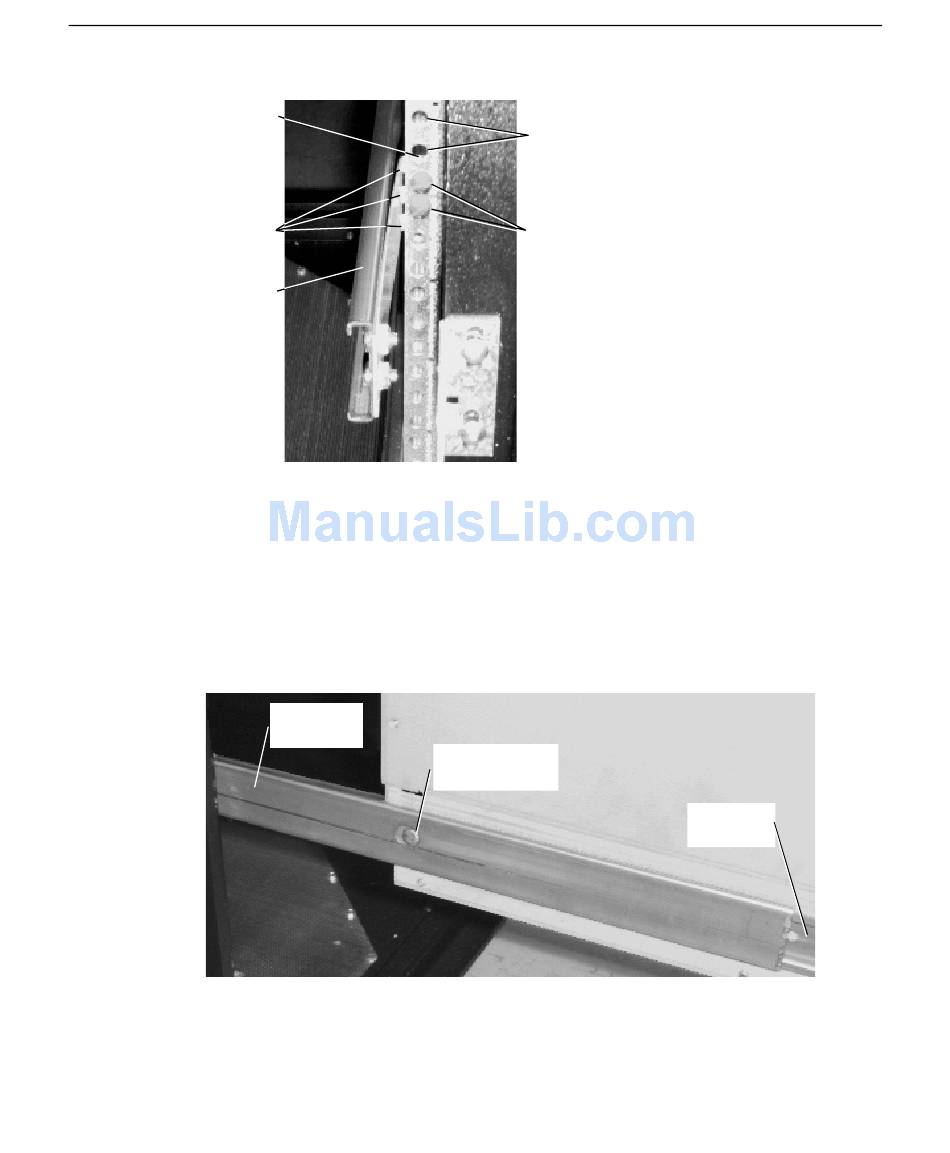

a click. Refer to the following figure.
12. Press the locked rail tabs and slide the base unit completely back into the rack. After the
base unit slides back a few inches, the base unit and rails slide together as a unit into the
rack. Refer to the following figure.
13. Install the black screws through the handle brackets and the tinnerman nuts you installed
in step 7 to secure the base unit to the rack.
Rack Rail
(Each Side)
Locked Rail Tab
(Each Side)
Mounting
Holes
Button-Head
Screws
Rail Guide
(Each Side)
