Understanding Vertical Units; Setting Up The System - Intergraph StudioZ RenderRAX III System Setup

4
u
Maintain the following operating environment.
Temperature range: 50 F to 77 F (10 C to 25 C). Optimum: 70 F (21 C)
Humidity range: 20 % to 80 % non-condensing. Optimum: 50 %

Understanding Vertical Units

You can identify a vertical unit (U) mark as a round hole along the edge of the side rails. Note
that it is smaller than the mounting holes used to secure equipment in a rack. The 40 U rack
additionally uses a square hole to indicate every fourth vertical unit. You should determine
the vertical mounting space within a rack enclosure for each device you wish to install. For
example, an AC distribution box can require 1 U or 2 U of mounting space, while a server
requires five vertical units (5 U), or 8.75 inches, of mounting space.
u
A vertical unit equals 1.75 inches and consists of three mounting holes.
u
The mounting hole diameter is 7.1 mm (industry standard).
u
Mounting holes are counted upward after locating the first mounting hole within the range
of vertical units required to install the equipment.

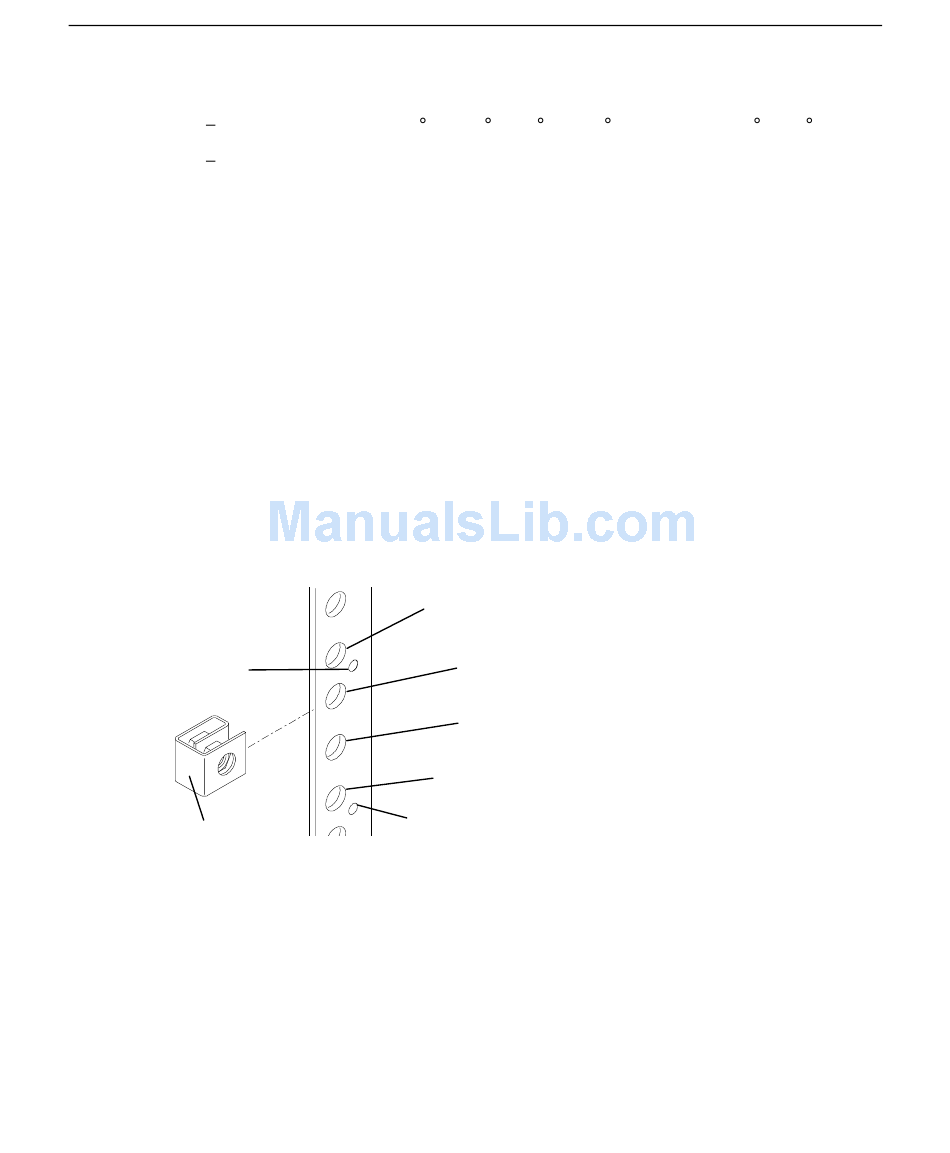

The following figure shows installing a tinnerman nut to mounting hole 3 of a vertical unit.
Vertical
Unit
Marker
Tinnerman
Nut

Setting Up the System

CAUTION Two persons are required to perform the following procedures.
To install the base unit:
1. Remove the system base unit and mounting rails from the carton and shipping materials.
Use a helper!
Mounting Hole 4
Mounting Hole 3
Mounting Hole 2
Mounting Hole 1
Vertical Unit
Marker
