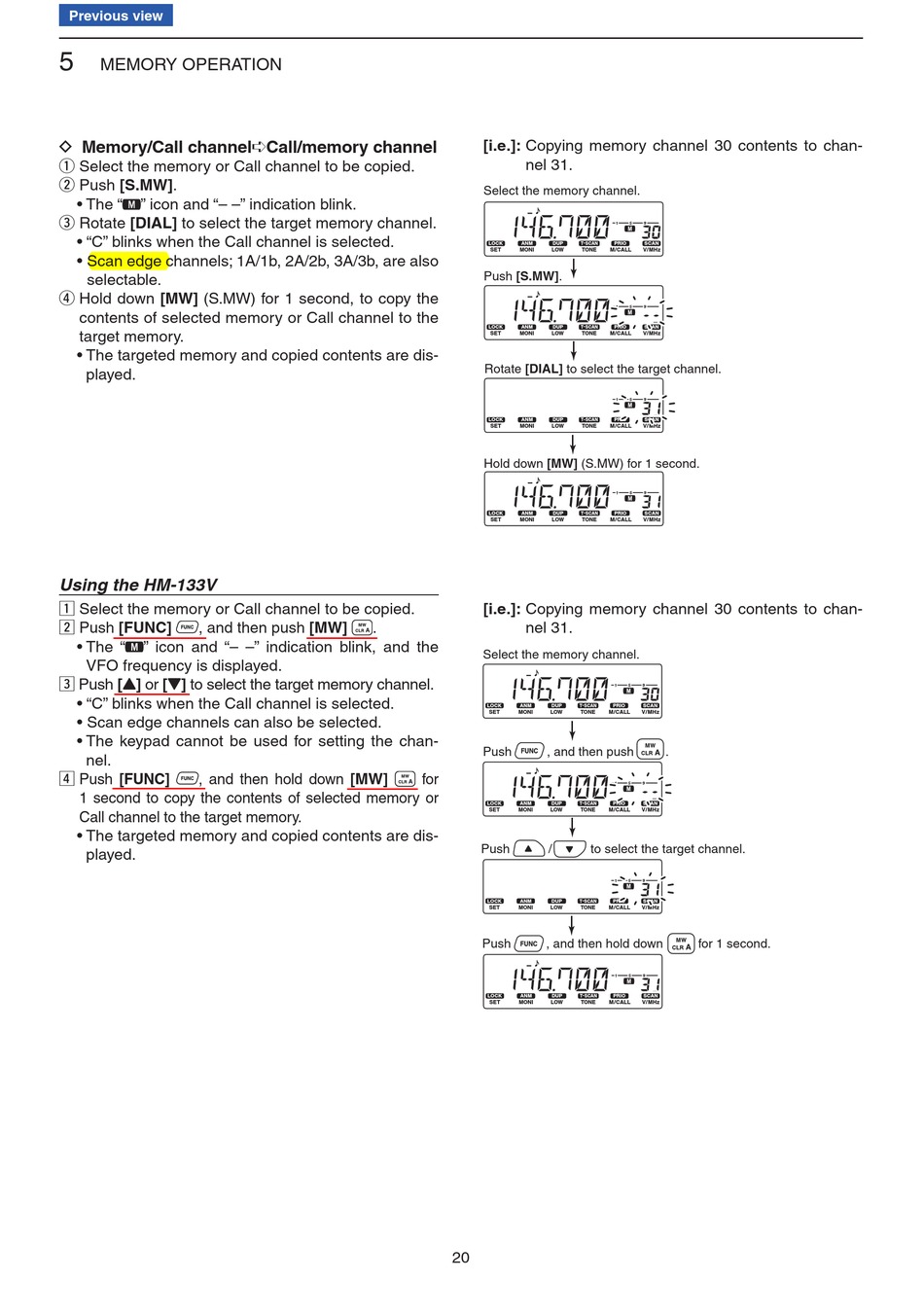

Icom IC-2300H Instruction Manual page 30

Previous view
5
MEMORY OPERATION
D Memory/Call channel➪Call/memory channel
q Select the memory or Call channel to be copied.
w Push [S.MW].
• The " " icon and "– –" indication blink.
e Rotate [DIAL] to select the target memory channel.
• "C" blinks when the Call channel is selected.
• Scan edge channels; 1A/1b, 2A/2b, 3A/3b, are also
selectable.
r Hold down [MW] (S.MW) for 1 second, to copy the
contents of selected memory or Call channel to the
target memory.
• The targeted memory and copied contents are dis-
played.
Using the HM-133V
z Select the memory or Call channel to be copied.
x Push [FUNC]
, and then push [MW]
• The " " icon and "– –" indication blink, and the
VFO frequency is displayed.
c Push [Y] or [Z] to select the target memory channel.
• "C" blinks when the Call channel is selected.
• Scan edge channels can also be selected.
• The keypad cannot be used for setting the chan-
nel.
v Push [FUNC]
, and then hold down [MW]
1 second to copy the contents of selected memory or
Call channel to the target memory.
• The targeted memory and copied contents are dis-
played.
[i.e.]: Copying memory channel 30 contents to chan-
nel 31.
Select the memory channel.
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
Push [S.MW].
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
Rotate [DIAL] to select the target channel.
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
Hold down [MW] (S.MW) for 1 second.
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
[i.e.]: Copying memory channel 30 contents to chan-
. nel 31.
Select the memory channel.
MUTE
NAR
MID
LOW
LOCK ANM
S ET
MONI
Push
for
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
Push
MUTE
NAR
MID
LOW
LOCK ANM
S ET
MONI
Push , and then hold down
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
20
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
, and then push .
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
/ to select the target channel.
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
for 1 second.
DIGITAL PRIO AO BUSY
DUP T-SCAN PRIO SCAN
LOW TONE M/CALL V/MHz
