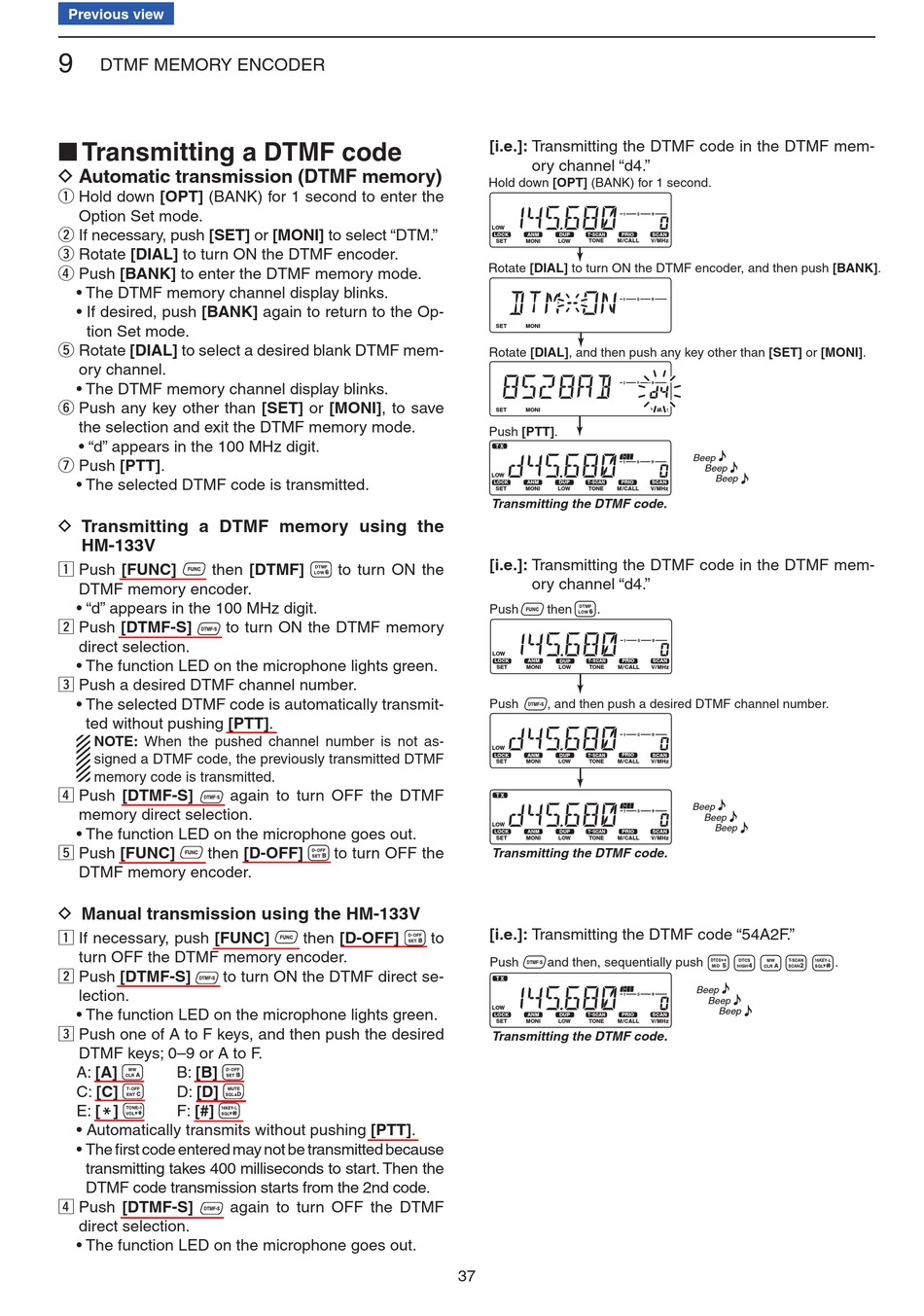

DTMF MEMORY ENCODER

■ Transmitting a DTMF code

D
Automatic transmission (DTMF memory)
q Hold down [OPT] (BANK) for 1 second to enter the
Option Set mode.
w If necessary, push [SET] or [MONI] to select "DTM."
e Rotate [DIAL] to turn ON the DTMF encoder.
r Push [BANK] to enter the DTMF memory mode.
• The DTMF memory channel display blinks.
• If desired, push [BANK] again to return to the Op-
tion Set mode.
t Rotate [DIAL] to select a desired blank DTMF mem-
ory channel.
• The DTMF memory channel display blinks.
y Push any key other than [SET] or [MONI], to save
the selection and exit the DTMF memory mode.
• "d" appears in the 100 MHz digit.
u Push [PTT].
• The selected DTMF code is transmitted.
D Transmitting a DTMF memory using the
HM-133V
z Push [FUNC]
then [DTMF]
DTMF memory encoder.
• "d" appears in the 100 MHz digit.
x Push [DTMF-S]
to turn ON the DTMF memory
direct selection.
• The function LED on the microphone lights green.
c Push a desired DTMF channel number.
• The selected DTMF code is automatically transmit-
ted without pushing [PTT].
NOTE: When the pushed channel number is not as-
signed a DTMF code, the previously transmitted DTMF
memory code is transmitted.
v Push [DTMF-S]
again to turn OFF the DTMF
memory direct selection.
• The function LED on the microphone goes out.
b Push [FUNC]
then [D-OFF]
DTMF memory encoder.
D Manual transmission using the HM-133V
z If necessary, push [FUNC]
turn OFF the DTMF memory encoder.
x Push [DTMF-S]
to turn ON the DTMF direct se-
lection.
• The function LED on the microphone lights green.
c Push one of A to F keys, and then push the desired
DTMF keys; 0–9 or A to F.
A: [A] B: [B]
C: [C] D: [D]
E: [M] F: [#]
• Automatically transmits without pushing [PTT].
• The fi rst code entered may not be transmitted because
transmitting takes 400 milliseconds to start. Then the
DTMF code transmission starts from the 2nd code.
v Push [DTMF-S]
again to turn OFF the DTMF
direct selection.
• The function LED on the microphone goes out.
to turn ON the
to turn OFF the
then [D-OFF] to
37
[i.e.]: Transmitting the DTMF code in the DTMF mem-
ory channel "d4."
