7
SCAN OPERATION

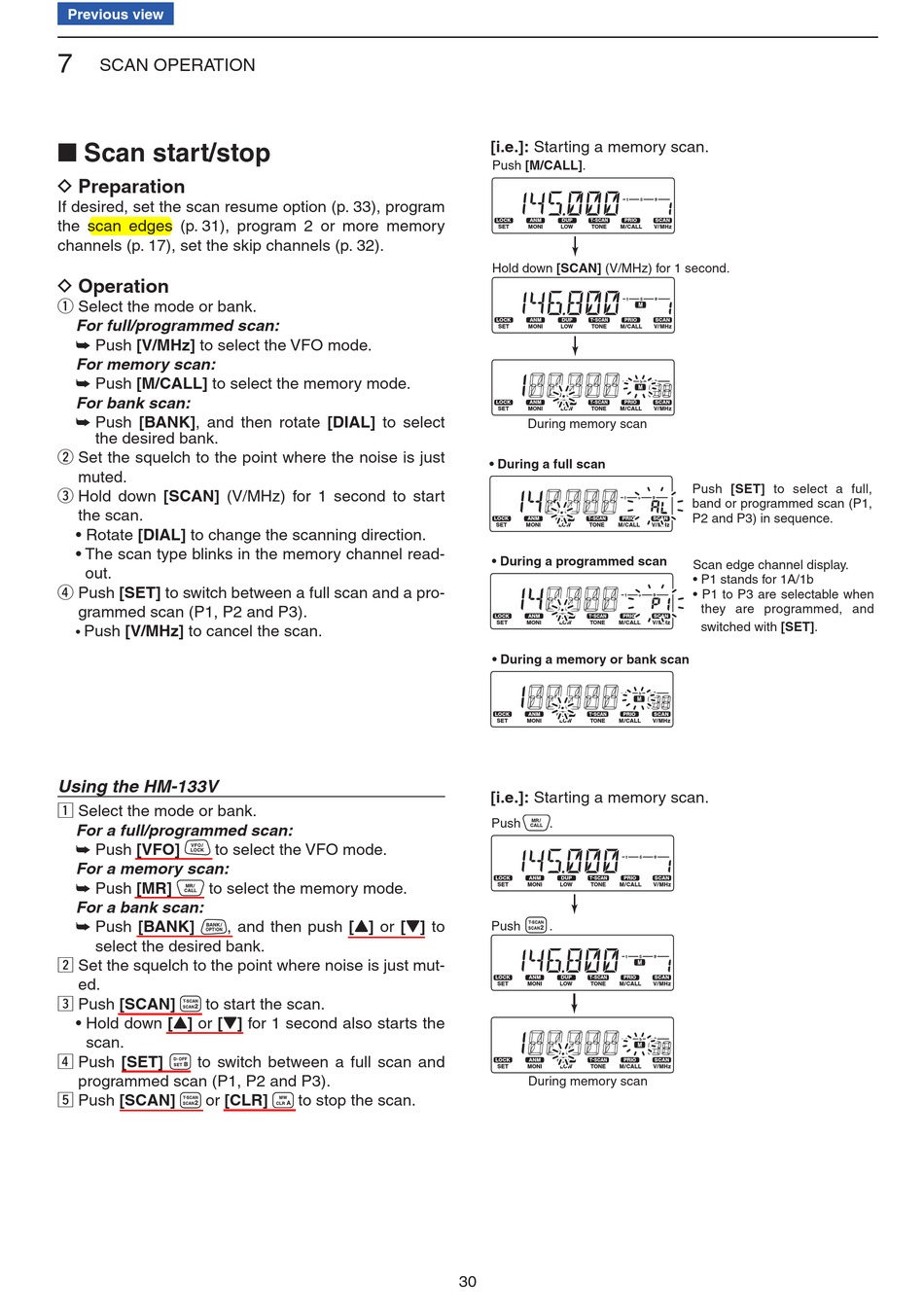

■ Scan start/stop

D
Preparation
If desired, set the scan resume option (p. 33), program
the scan edges (p. 31), program 2 or more memory
channels (p. 17), set the skip channels (p. 32).
D
Operation
q Select the mode or bank.
For full/programmed scan:
➥ Push [V/MH z] to select the VFO mode.
For memory scan:
➥ Push [M/CALL] to select the memory mode.
For bank scan:
➥ Push [BANK], and then rotate [DIAL] to select
the desired bank.
w Set the squelch to the point where the noise is just
muted.
e Hold down [SCAN] (V/MHz) for 1 second to start
the scan.
• Rotate [DIAL] to change the scanning direction.
• The scan type blinks in the memory channel read-
out.
r Push [SET] to switch between a full scan and a pro-
grammed scan (P1, P2 and P3).
Push [V/MH z] to cancel the scan.
•
Using the HM-133V
z Select the mode or bank.
For a full/programmed scan:
➥ Push [VFO]
to select the VFO mode.
For a memory scan:
➥ Push [MR]
to select the memory mode.
For a bank scan:
➥ Push [BANK]
, and then push [Y] or [Z] to
select the desired bank.
x Set the squelch to the point where noise is just mut-
ed.
c Push [SCAN]
to start the scan.
• Hold down [Y] or [Z] for 1 second also starts the
scan.
v Push [SET]
to switch between a full scan and
programmed scan (P1, P2 and P3).
b Push [SCAN]
or [CLR] to stop the scan.
30
[i.e.]: Starting a memory scan.
Push [M/CALL].
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Hold down [SCAN] (V/MHz) for 1 second.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET TONE M/CALL
MONI LOW V/MHz
During memory scan
• During a full scan
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
• During a programmed scan
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
• During a memory or bank scan
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
[i.e.]: Starting a memory scan.
Push .
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Push .
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
During memory scan
Push [SET] to select a full,
band or programmed scan (P1,
P2 and P3) in sequence.
Scan edge channel display.
• P1 stands for 1A/1b
• P1 to P3 are selectable when
they are programmed, and
switched with [SET].
