11

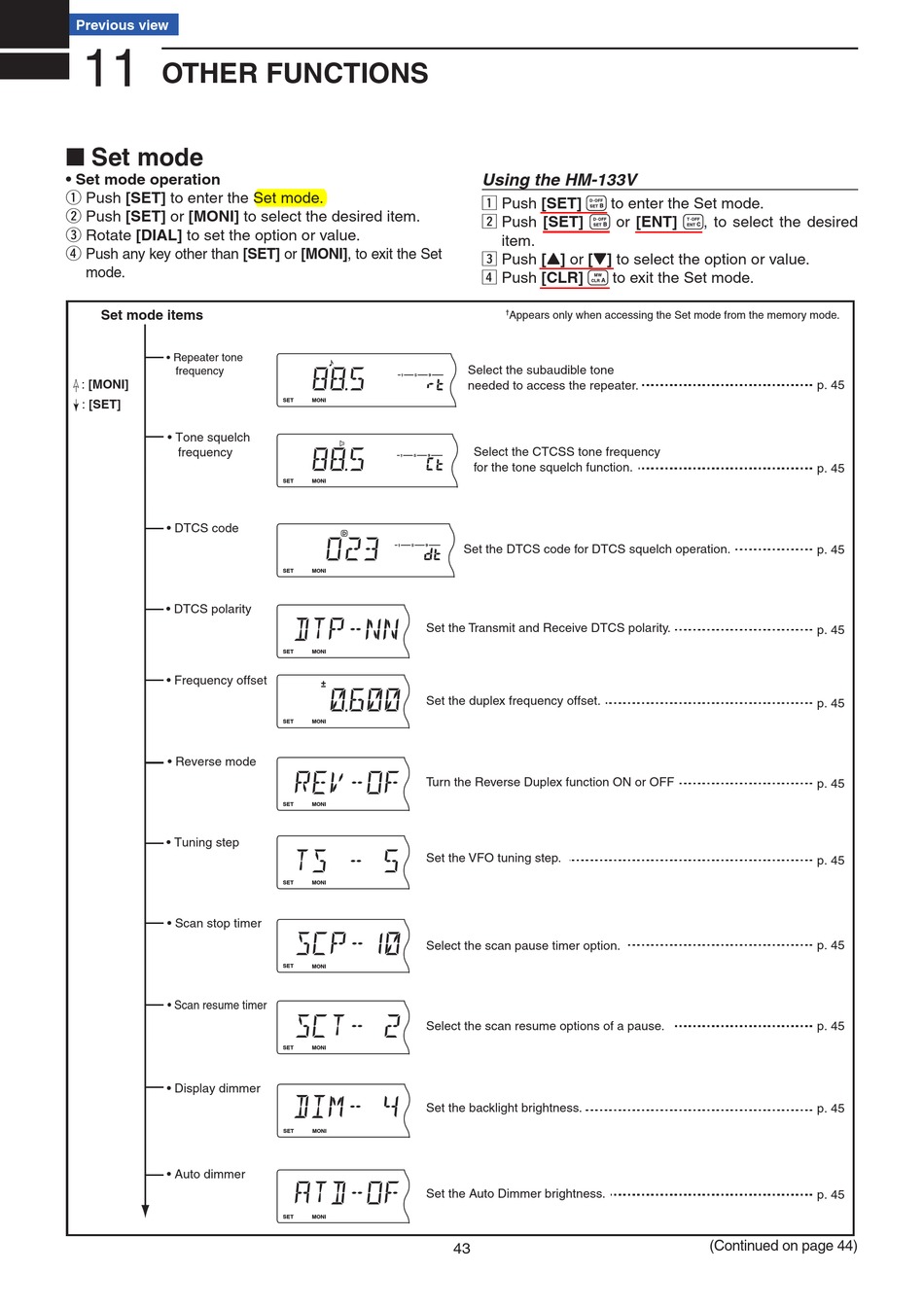

OTHER FUNCTIONS

■ Set mode

• Set mode operation
q Push [SET] to enter the Set mode.
w Push [SET] or [MONI] to select the desired item.
e Rotate [DIAL] to set the option or value.
r Push any key other than [SET] or [MONI], to exit the Set
mode.
Set mode items
• Repeater tone
frequency
: [MONI]
: [SET]
• Tone squelch
frequency
• DTCS code
• DTCS polarity
• Frequency offset
• Reverse mode
• Tuning step
• Scan stop timer
• Scan resume timer
• Display dimmer
• Auto dimmer
S ET MONI
S ET MONI
S ET
MONI
Set the Transmit and Receive DTCS polarity.
S ET MONI
Set the duplex frequency offset.
S ET MONI
Turn the Reverse Duplex function ON or OFF
S ET MONI
Set the VFO tuning step.
S ET MONI
Select the scan pause timer option.
S ET MONI
Select the scan resume options of a pause.
S ET MONI
Set the backlight brightness.
S ET MONI
Set the Auto Dimmer brightness.
S ET MONI
43
Using the HM-133V
z Push [SET]
to enter the Set mode.
x Push [SET]
or [ENT]
item.
c Push [Y] or [Z] to select the option or value.
v Push [CLR]
to exit the Set mode.
†
Appears only when accessing the Set mode from the memory mode.
Select the subaudible tone
needed to access the repeater.
Select the CTCSS tone frequency
for the tone squelch function.
Set the DTCS code for DTCS squelch operation.
, to select the desired
p. 45
p. 45
p. 45
p. 45
p. 45
p. 45
p. 45
p. 45
p. 45
p. 45
p. 45
(Continued on page 44)
