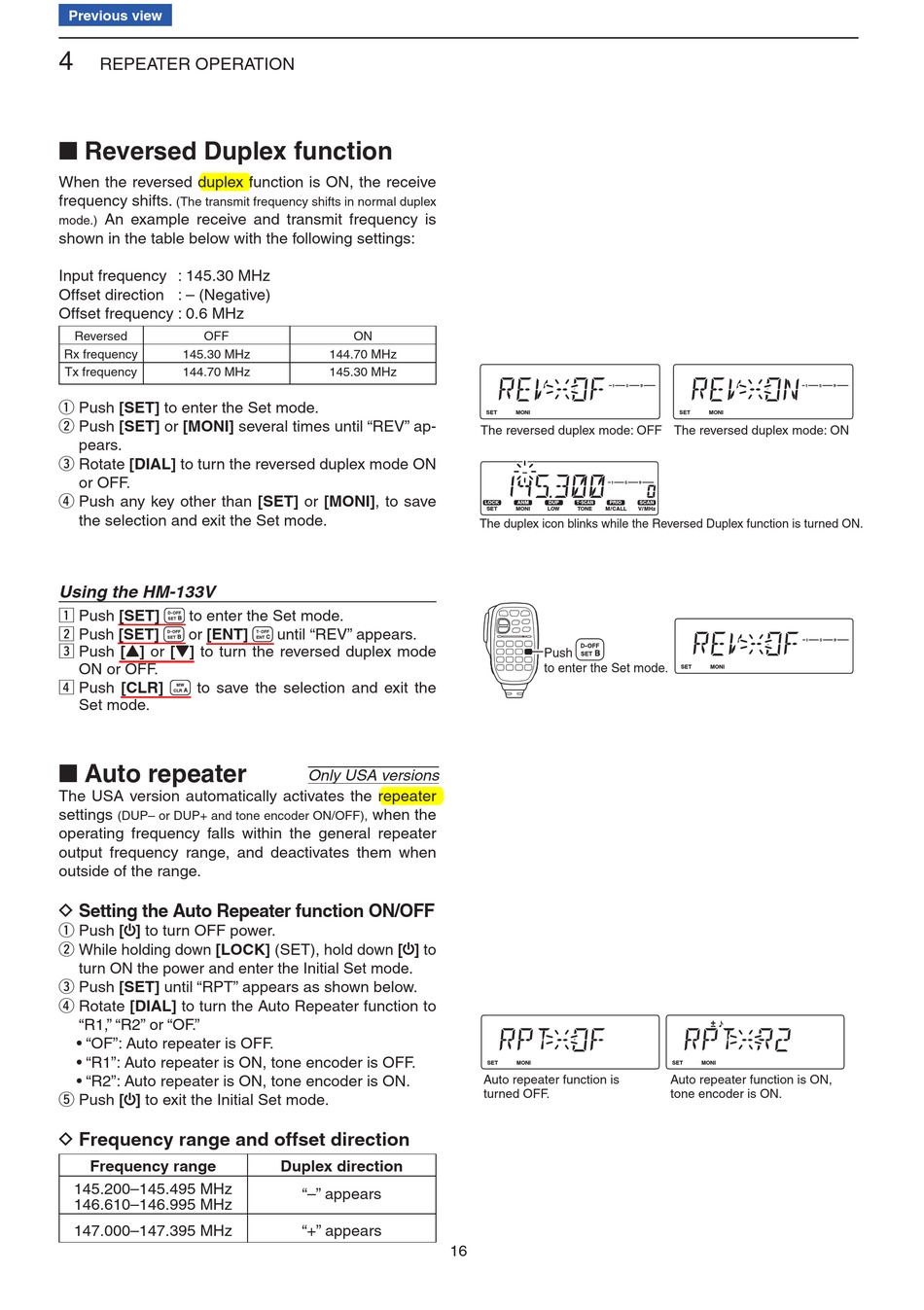

REPEATER OPERATION

■ Reversed Duplex function

When the reversed duplex function is ON, the receive
frequency shifts.
(The transmit frequency shifts in normal duplex
An example receive and transmit frequency is
mode.)
shown in the table below with the following settings:
Input frequency : 145.30 MHz
Offset direction : – (Negative)
Offset frequency : 0.6 MHz
Reversed OFF
Rx frequency 145.30 MHz
Tx frequency 144.70 MHz
q Push [SET] to enter the Set mode.
w Push [SET] or [MONI] several times until "REV" ap-
pears.
e Rotate [DIAL] to turn the reversed duplex mode ON
or OFF.
r Push any key other than [SET] or [MONI], to save
the selection and exit the Set mode.
Using the HM-133V
z Push [SET]
to enter the Set mode.
x Push [SET]
or [ENT]
c Push [Y] or [Z] to turn the reversed duplex mode
ON or OFF.
v Push [CLR]
to save the selection and exit the
Set mode.

■ Auto repeater

The USA version automatically activates the repeater
settings
(DUP– or DUP+ and tone encoder ON/OFF),
operating frequency falls within the general repeater
output frequency range, and deactivates them when
outside of the range.
D Setting the Auto Repeater function ON/OFF
q Push [ ] to turn OFF power.
w While holding down [LOCK] (SET), hold down [ ] to
turn ON the power and enter the Initial Set mode.
e Push [SET] until "RPT" appears as shown below.
r Rotate [DIAL] to turn the Auto Repeater function to
"R1," "R2" or "OF."
• "OF": Auto repeater is OFF.
• "R1": Auto repeater is ON, tone encoder is OFF.
• "R2": Auto repeater is ON, tone encoder is ON.
t Push [ ] to exit the Initial Set mode.
D

Frequency range and offset direction

Frequency range
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
ON
144.70 MHz
145.30 MHz
until "REV" appears.
Only USA versions
when the
Duplex direction
"–" appears
"+" appears
16
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
The reversed duplex mode: OFF The reversed duplex mode: ON
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
The duplex icon blinks while the Reversed Duplex function is turned ON.
Push
to enter the Set mode.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Auto repeater function is
turned OFF.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Auto repeater function is ON,
tone encoder is ON.
