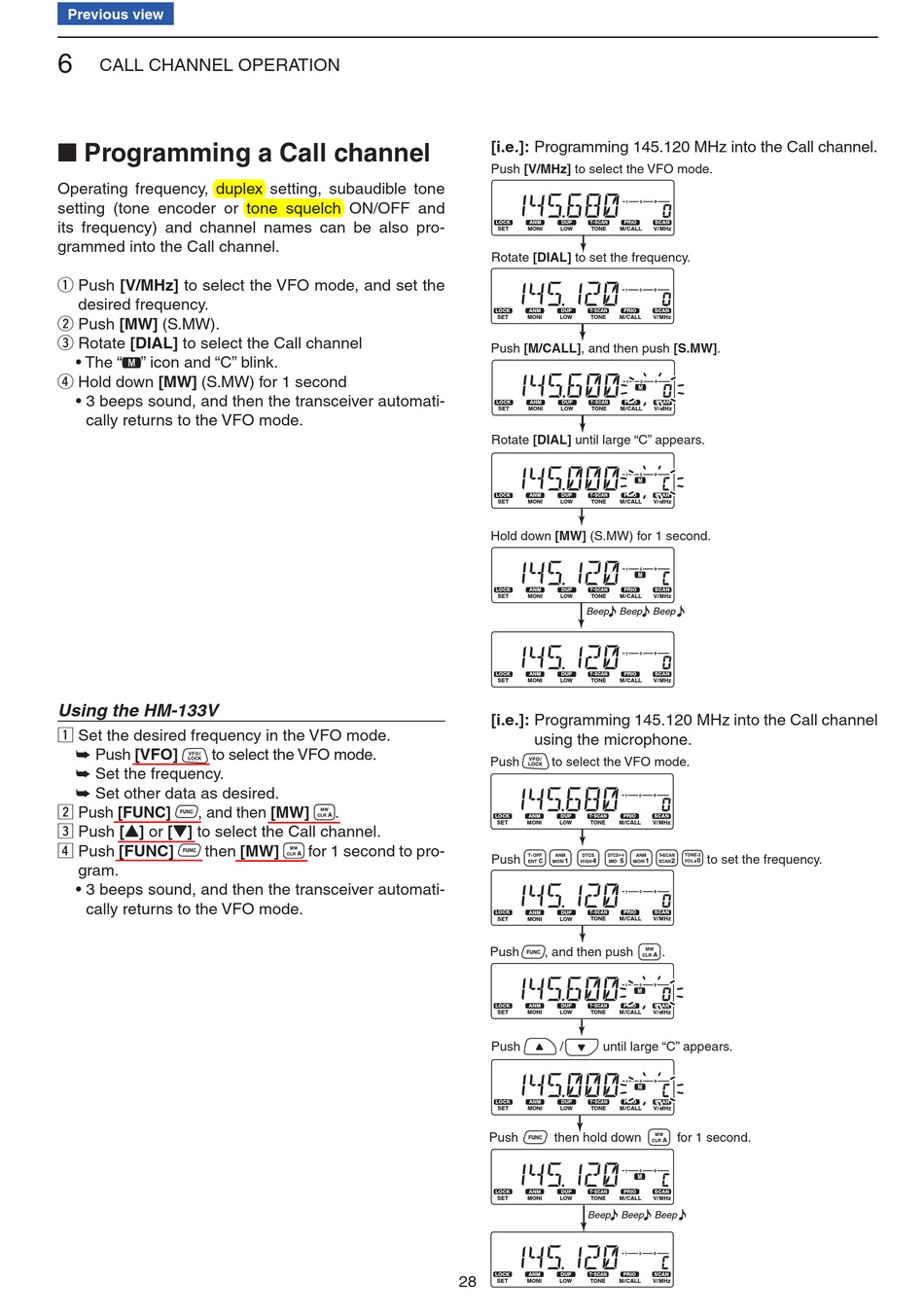

CALL CHANNEL OPERATION

■ Programming a Call channel

Operating frequency, duplex setting, subaudible tone
setting (tone encoder or tone squelch ON/OFF and
its frequency) and channel names can be also pro-
grammed into the Call channel.
q Push [V/MH z] to select the VFO mode, and set the
desired frequency.
w Push [MW] (S.MW).
e Rotate [DIAL] to select the Call channel
• The " " icon and "C" blink.
r Hold down [MW] (S.MW) for 1 second
• 3 beeps sound, and then the transceiver automati-
cally returns to the VFO mode.
Using the HM-133V
z Set the desired frequency in the VFO mode.
➥ Push [VFO]
to select the VFO mode.
➥ Set the frequency.
➥ Set other data as desired.
x Push [FUNC]
, and then [MW]
c Push [Y] or [Z] to select the Call channel.
v Push [FUNC]
then [MW]
gram.
• 3 beeps sound, and then the transceiver automati-
cally returns to the VFO mode.
.
for 1 second to pro-
28
[i.e.]: Programming 145.120 MHz into the Call channel.
Push [V/MHz] to select the VFO mode.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Rotate [DIAL] to set the frequency.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Push [M/CALL], and then push [S.MW].
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET
MONI LOW TONE M/CALL V/MHz
Rotate [DIAL] until large "C" appears.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Hold down [MW] (S.MW) for 1 second.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Beep Beep Beep
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
[i.e.]: Programming 145.120 MHz into the Call channel
using the microphone.
Push to select the VFO mode.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Push
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Push , and then push .
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Push / until large "C" appears.
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Push then hold down
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
Beep Beep Beep
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
to set the frequency.
for 1 second.
