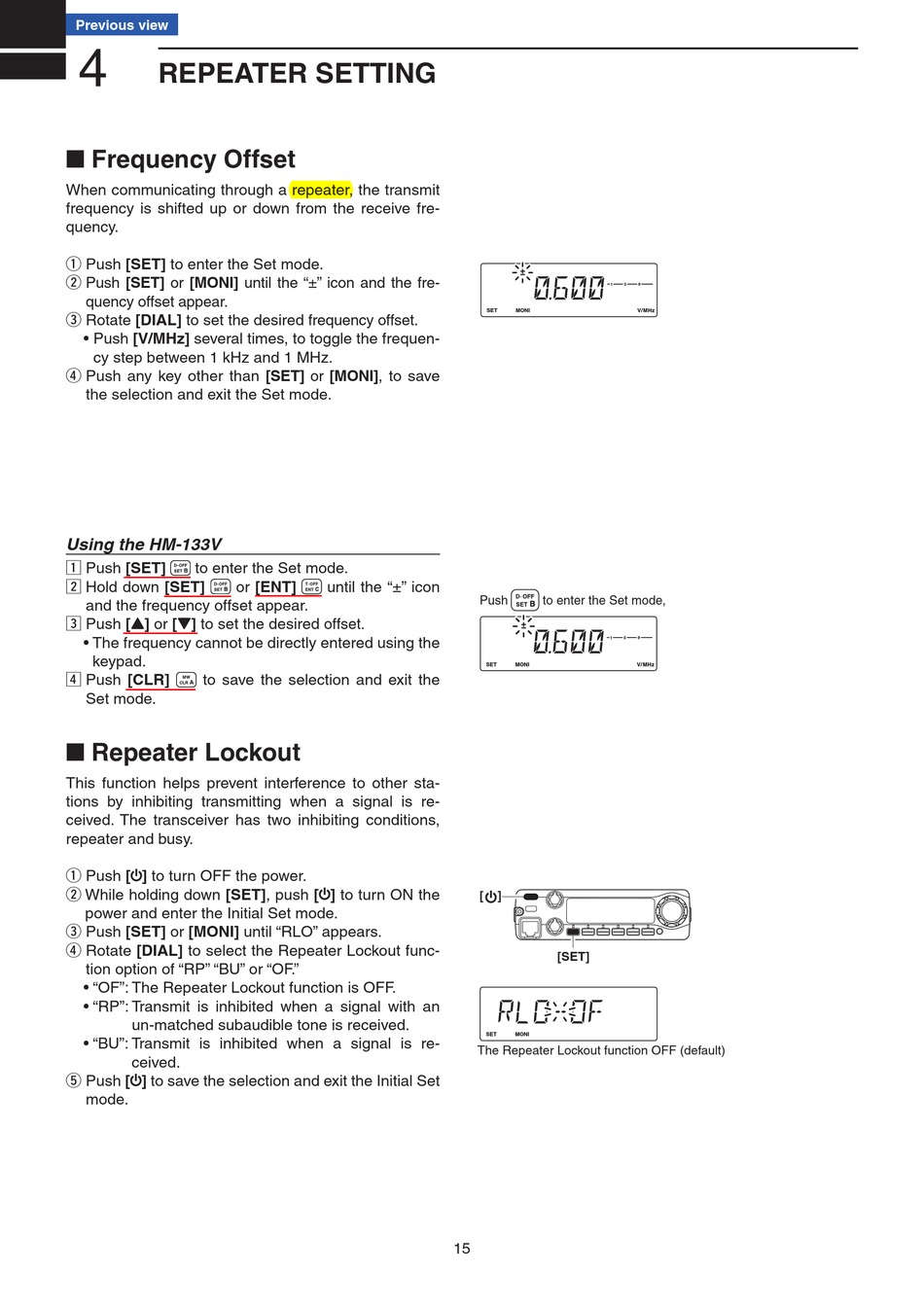

REPEATER SETTING

■ Frequency Offset

When communicating through a repeater, the transmit
frequency is shifted up or down from the receive fre-
quency.
q Push [SET] to enter the Set mode.
w Push [SET] or [MONI] until the "±" icon and the fre-
quency offset appear.
e Rotate [DIAL] to set the desired frequency offset.
• Push [V/MHz] several times, to toggle the frequen-
cy step between 1 kHz and 1 MHz.
r Push any key other than [SET] or [MONI], to save
the selection and exit the Set mode.
Using the HM-133V
z Push [SET]
to enter the Set mode.
x Hold down [SET]
or [ENT]
and the frequency offset appear.
c Push [Y] or [Z] to set the desired offset.
• The frequency cannot be directly entered using the
keypad.
v Push [CLR]
to save the selection and exit the
Set mode.

■ Repeater Lockout

This function helps prevent interference to other sta-
tions by inhibiting transmitting when a signal is re-
ceived. The transceiver has two inhibiting conditions,
repeater and busy.
q Push [ ] to turn OFF the power.
w While holding down [SET], push [ ] to turn ON the
power and enter the Initial Set mode.
e Push [SET] or [MONI] until "RLO" appears.
r Rotate [DIAL] to select the Repeater Lockout func-
tion option of "RP" "BU" or "OF."
• "OF": The Repeater Lockout function is OFF.
• "RP": Transmit is inhibited when a signal with an
un-matched subaudible tone is received.
• "BU": Transmit is inhibited when a signal is re-
ceived.
t Push [ ] to save the selection and exit the Initial Set
mode.
MUTE
NAR
MID
LOW
LOCK
S ET
until the "±" icon
Push
MUTE
NAR
MID
LOW
LOCK
S ET
[ ]
MUTE
NAR
MID
LOW
LOCK
S ET
The Repeater Lockout function OFF (default)
15
DIGITAL PRIO AO BUSY
ANM DUP T-SCAN PRIO SCAN
MONI LOW TONE M/CALL V/MHz
to enter the Set mode,
DIGITAL PRIO AO BUSY
ANM DUP T-SCAN PRIO SCAN
MONI LOW TONE M/CALL V/MHz
[SET]
DIGITAL PRIO AO BUSY
ANM DUP T-SCAN PRIO SCAN
MONI LOW TONE M/CALL V/MHz
