Euphonix System 5 Installation Guide

TT002

The TT002 is a single-port RS422 (Sony 9-pin) machine controller that is installed in the

System Computer. It also supports Midi Machine Control (MMC), and can read and

generate timecode over MIDI, RS422, and LTC. A BNC input connector accepts Bi/Tri-

Level video reference signals.

General-purpose inputs and outputs are handled by the TT002. Thirty-two buffered TTL

inputs and open-collector outputs are available on two 37-pin D-subminiature connectors

on the rear panel of the System Computer. Two TT002's may be used for a total of 64

GPIO.

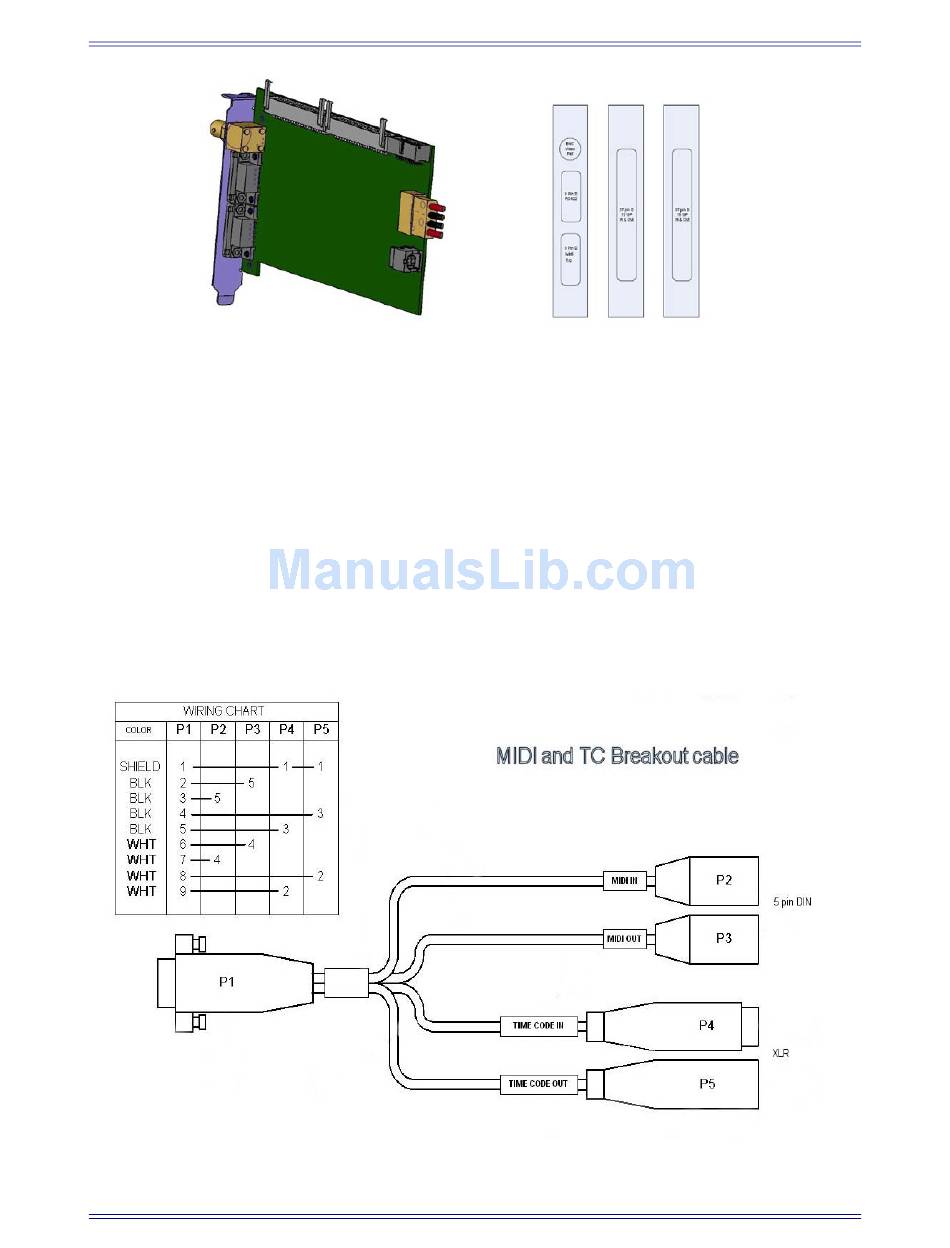

Figure 3-36 TT002 card and panels

Figure 3-37 TT002 P1 connections and pinouts

System 5 Components
