SC263 System Computer (S5B only)


VGA Connector (DA-15): Main video monitor connection.

Keyboard (PS/2): Main keyboard connection.

Mouse (PS/2): Main trackball connection.

Serial Port 1 (DE-9): Com1; currently not used. (Com2 is wired internally to the
SNMP board's Com port.)

Serial Port 2 (DE-9, top) and Serial Port 3 (DE-9, bottom): Com3 and Com4, res-
pectively; currently not used

TT002 (75-ohm BNC, DE-9 female, DE-9 male): BNC port is for Bi/Tri-Level Video
input; DE-9 female is for RS422 (Sony 9-pin); DE-9 male is for Midi Machine Control
and Time Code I/O (via breakout cable).

GPIO Port 1 (DC-37): GP Inputs and Outputs 1 to 16.

GPIO Port 2 (DC-37): GP Inputs and Outputs 17 to 32.

LAN Port 1 (Onboard RJ45): Connect to EuCon Network Switch via RJ45 (provided).

LAN Port 2 (Auxilary RJ45): Optional connection for external network.

11
SNMP LAN Port (RJ45): Connect this port to a network with SNMP monitoring or e-mail
services to enable the hardware monitoring system to report errors.

12
USB Ports: Connect the USB MIDI Interface to one of these ports. Connect a USB
memory device to one of these ports for file backup, application installations or updates.


16
13


  

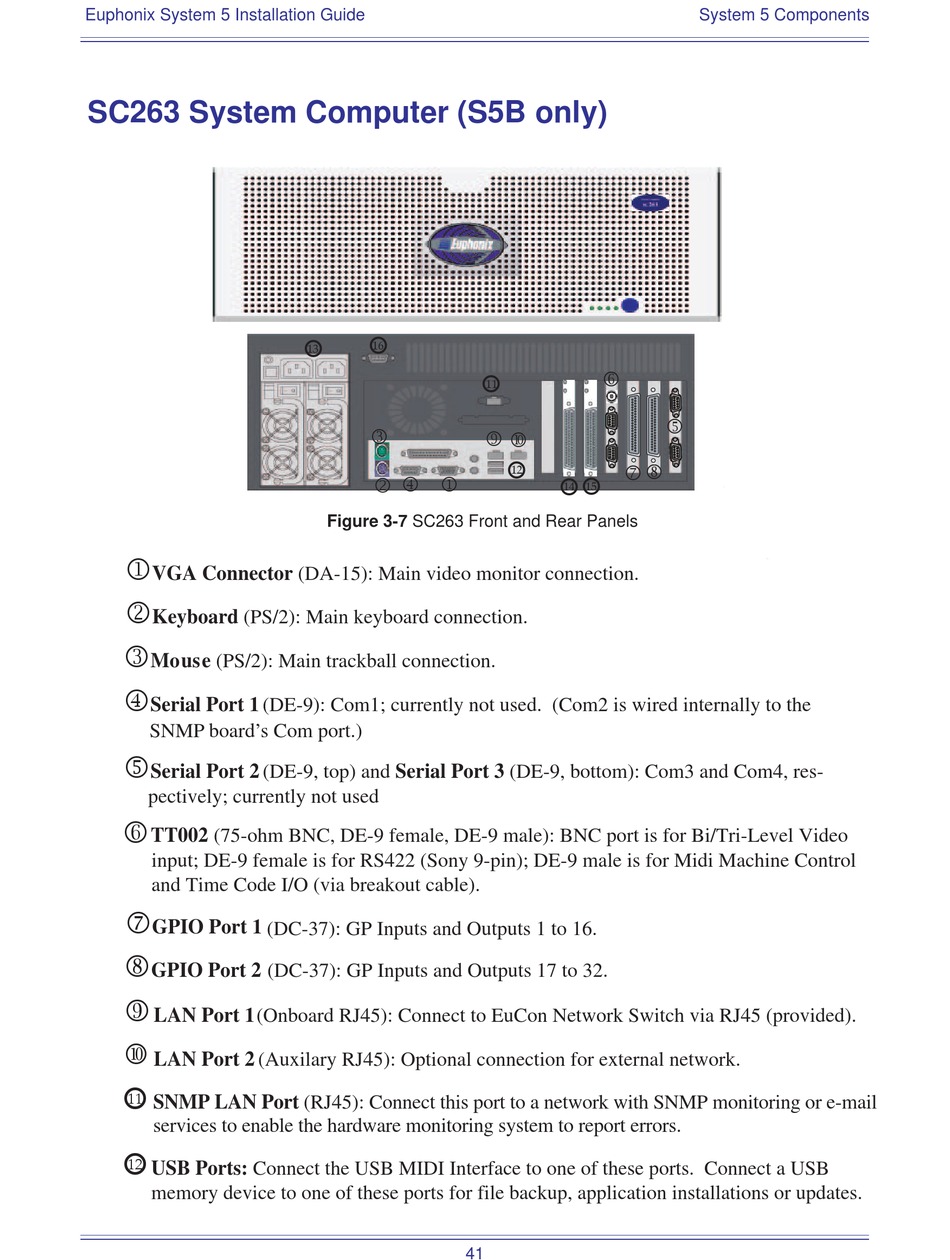

Figure 3-7 SC263 Front and Rear Panels
