Euphonix System 5 Installation Guide

Sync Card

AES Sync In (BNC): The DF66 SuperCore clocks to the signal at this port when the

sync source is set to AES Sync. Connect this port to a digital sync reference.

AES Sync In (3-pin Lemo Female): The DF66 SuperCore clocks to the signal at this

port when the sync source is set to AES Sync. Connect this port to a digital sync reference.

Word In (BNC): The DF66 clocks to the signal at this port when the sync source is set to

Word Clock. Connect this port to a digital sync reference.

Word Out (BNC): This signal is active regardless of selected sync source.

Bridge Cards are used to connect (or bridge) multiple SP662 DSP Line Cards in a DF66.

They mount on top of the SP662 cards. The Bridge Card shown in Figure 3.2 is a 6x6 (for

bridging six SP662 cards). Other types of Bridge Cards are 2x2, 3x3, 4x4, and 5x5.

MADI In (4) and MADI Out (4) digital audio ins and outs on a Combination D (Combo

D) Subminiature connector. A MADI I/O DSP Line Card Cable connects to this Combo

D connector and transports the MADI I/O to eight BNC connectors. See the MADI

Hookup diagram (figure 2-9) and the MADI I/O DSP Line Card Cable diagram (figure

3-3) for details on these connections.

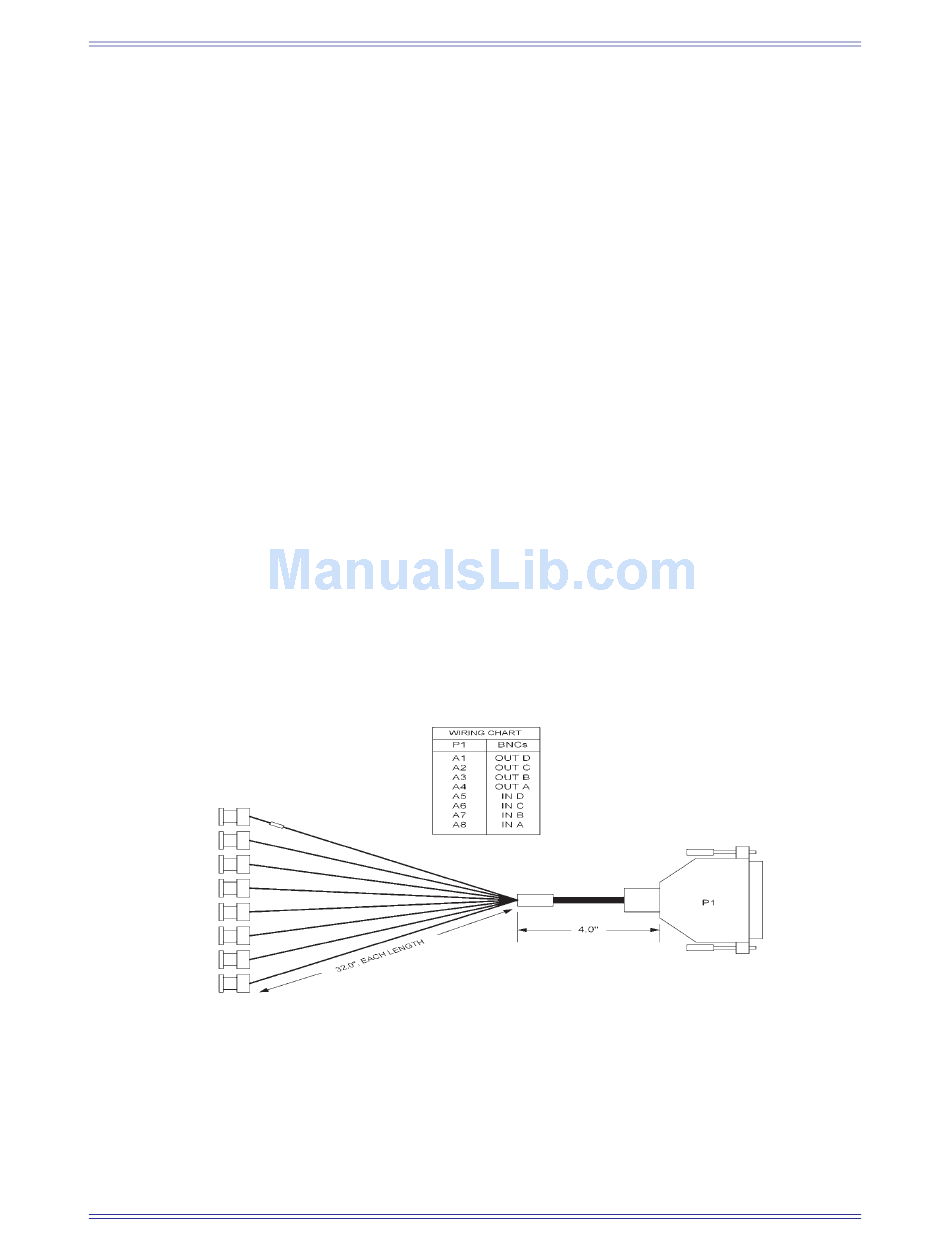

Figure 3-3

System 5 Components
