MADI In (BNC): Digital audio signal input.
•
1–24:
•
25–26: aux analog outputs
•
27–28: aux digital outputs
Bit-Depth Reduction: Sets the resolution to 16, 20, or 24 bits for the main AES/EBU channels.
Pin#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

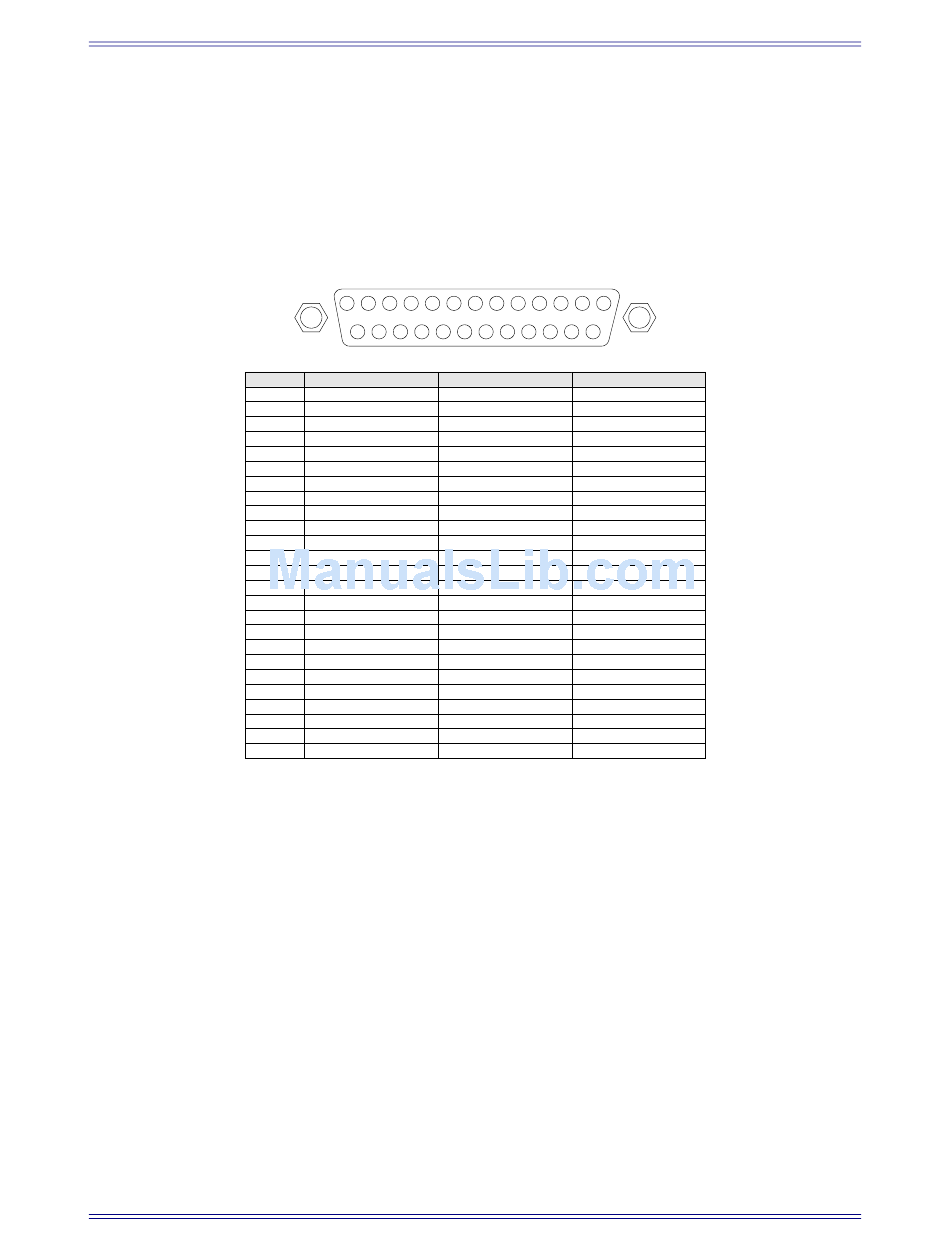

Figure 3-28 DM704 Parallel AES/EBU Digital Outputs: Female DB-25
main digital outputs
13
25
Connector 1 Connector 2
Digital out 7/8+ Digital Out 15/16+
GND GND
Digital out 5/6- Digital Out 13/14-
Digital out 3/4+ Digital Out 11/12+
GND GND
Digital out 1/2- Digital Out 9/10-
N/C
N/C
N/C
N/C
N/C
N/C
N/C
Digital out 7/8- Digital Out 15/16-
Digital out 5/6+ Digital Out 13/14+
GND GND
Digital out 3/4- Digital Out 11/12-
Digital out 1/2+ Digital Out 9/10+
GND GND
N/C
N/C
N/C
N/C
N/C
N/C
65
1
14
Connector 3
Digital Out 23/24+
GND
Digital Out 21/22-
Digital Out 19/20+
GND
Digital Out 17/18-
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
Digital Out 23/24-
Digital Out 21/22+
GND
Digital Out 19/20-
Digital Out 17/18+
GND
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
N/C N/C
