Euphonix System 5 Installation Guide

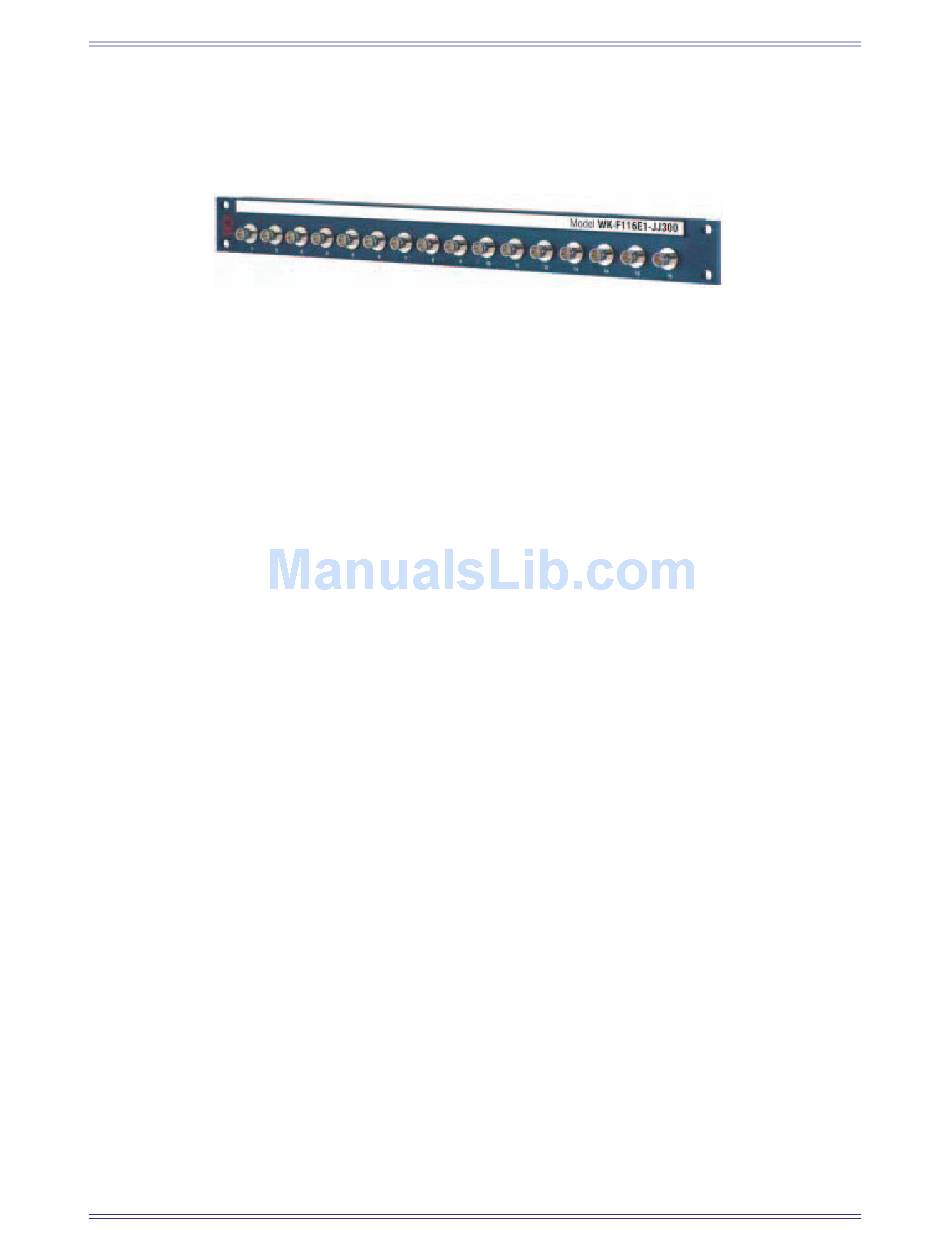

An optional 16-port BNC Bulkhead Panel (see figure 3-4) allows BNC panel access to the

DSP cards' MADI ports.

SNMP Card

An SNMP (Simple Network Management Protocol) card is installed in each DF66 and

(optionally) in the System Computer. The SNMP card is a platform-independent server

and PC-system management controller that can detect basic system operating conditions

and notify the user when the conditions fall outside the defined limits. It supports multi-

ple communication protocols via an RJ-45 ethernet port and an RS232 serial port.

System 5 Console

The System 5 Console consists of several modular components: the CM401T and

CM402T(console center section), the CM408T (contains eight physical faders and con-

trols), the CM403 (contains the joystick panner panel and film monitor panel), and the

CM409HTP Track Panner Module. Each component has the following connections:

Power Connector (IEC): Accepts standard IEC power cord (provided). An autoranging

switching supply accepts voltages between 100–240 VAC, 50–60 Hz.

Network Port (RJ45): Connect to EuCon Network Switch via RJ45 through the console

ethernet harness (provided).

Expansion Port (DB25): Active on the CM401T only. Connect optional, external talkback

switches or interface here.

Figure 3-4

System 5 Components
