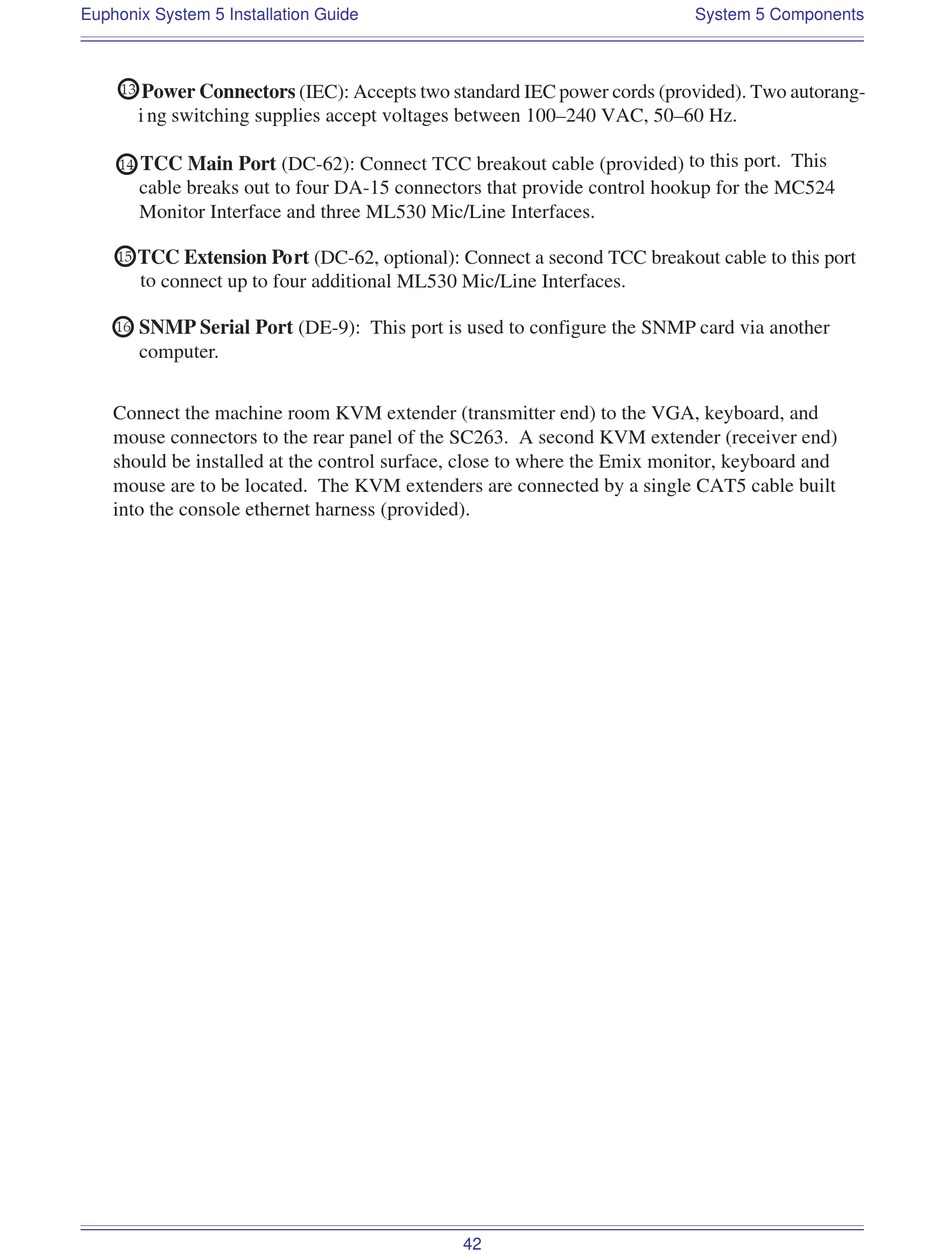

Euphonix System 5 Installation Guide

13
Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two autorang-
i ng switching supplies accept voltages between 100–240 VAC, 50–60 Hz.

TCC Main Port (DC-62): Connect TCC breakout cable (provided) to this port. This
14
cable breaks out to four DA-15 connectors that provide control hookup for the MC524
Monitor Interface and three ML530 Mic/Line Interfaces.

15
TCC Extension Port (DC-62, optional): Connect a second TCC breakout cable to this port
to
connect up to four additional ML530 Mic/Line Interfaces.

16
SNMP Serial Port (DE-9): This port is used to configure the SNMP card via another
computer.
Connect the machine room KVM extender (transmitter end) to the VGA, keyboard, and
mouse connectors to the rear panel of the SC263. A second KVM extender (receiver end)
should be installed at the control surface, close to where the Emix monitor, keyboard and
mouse are to be located. The KVM extenders are connected by a single CAT5 cable built
into the console ethernet harness (provided).
42
System 5 Components
