System Map: Front & Rear Views; See "Ports And Jacks - EUROCOM Notebook User Manual

Quick Start Guide
1

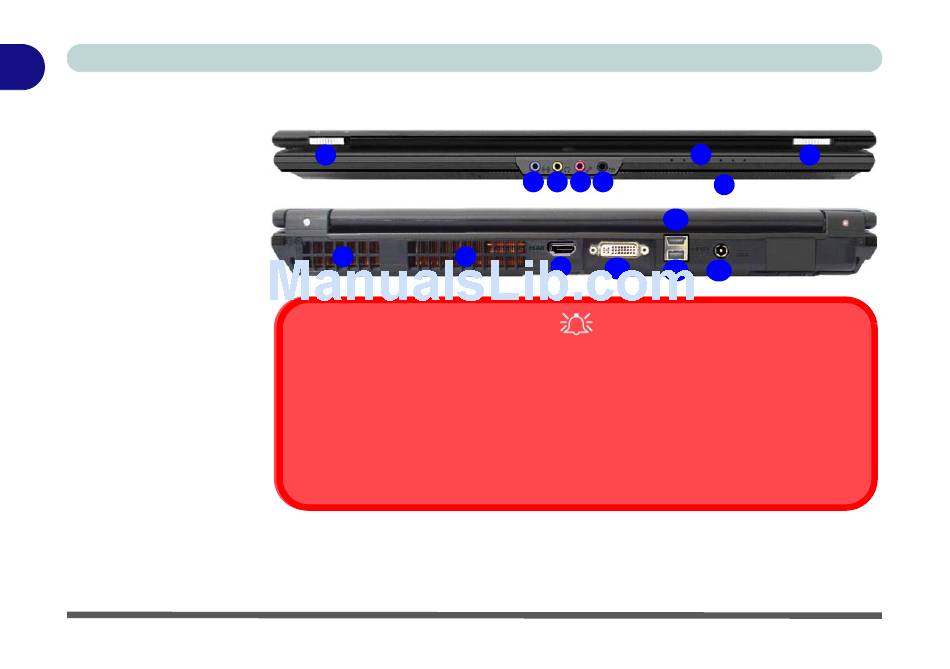

Figure 1 - 4
Front View
1. LCD Latches
2. Line-In Jack
3. Headphone-Out
Jack
4. Microphone-In Jack
5. S/PDIF-Out Jack
6. LED Indicators
7. Infrared Transceiver
& Consumer
Infrared Transceiver
8. Vent/Fan Intake/
Outlet
9. HDMI-Out Port
10. DVI-Out Port
11. Combined eSATA/
USB Port
12. USB 2.0 Port
13. DC-In Jack
1 - 10 System Map: Front & Rear Views
System Map: Front & Rear Views
1
8
To prevent your computer from overheating make sure nothing blocks the Vent/Fan In-
take/Outlet while the computer is in use.
Note that the connections to the USB ports only fit one way, do not force them.
See "Ports and Jacks" on page A - 2
which allow your computer to communicate with external devices, connect to the internet
etc.
2 3 4 5
8
9
10
Overheating
USB Ports
for a description of the interface (ports & jacks)
6
1
7
11
12 13
