Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons
it is best to remove the battery. Before removing the battery disconnect the AC/
DC adapter from the computer first.
1. Turn the computer off, remove the AC/DC adapter and turn it over.
1
2. Loosen screws -
3. Remove the battery from the battery bay.
1 2 3
3
and carefully lift the battery
4
Upgrading The Computer
up.
4
4
Removing the Battery 6 - 3

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.

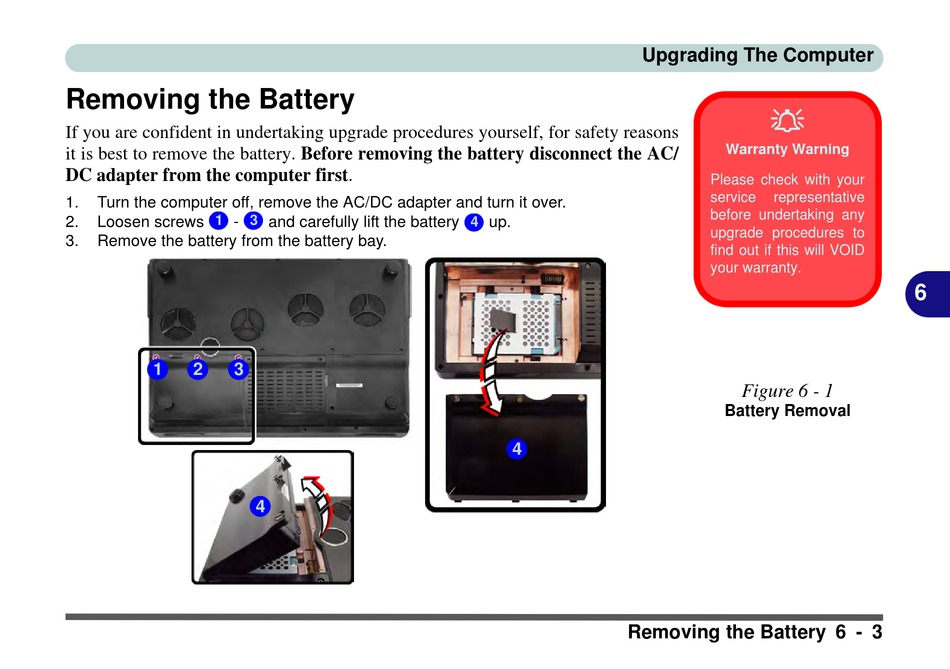

Figure 6 - 1
Battery Removal
6
