System Map: Front & Rear Views
1
2
5
Note that the TV Tuner module (factory) option is supported by the Windows Media Cen-
ter software. Windows Media Center is not included in Starter or Home Basic versions
of Windows 7.
5
4

TV Tuner Module Support
3
5 5
System Map: Front & Rear Views 1 - 11
Quick Start Guide

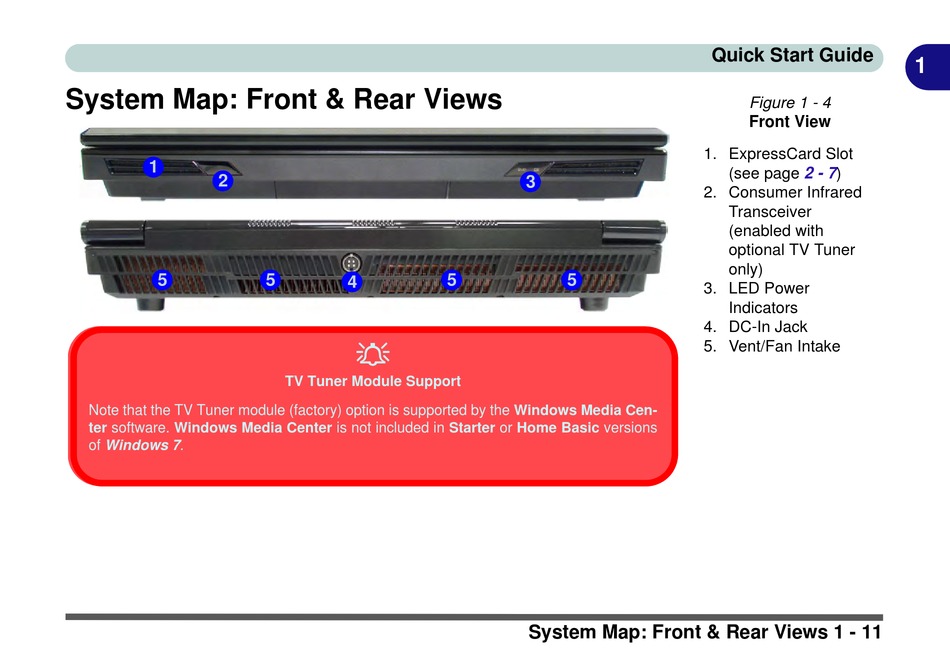

Figure 1 - 4
Front View
1. ExpressCard Slot
(see page 2 - 7)
2. Consumer Infrared
Transceiver
(enabled with
optional TV Tuner
only)
3. LED Power
Indicators
4. DC-In Jack
5. Vent/Fan Intake
1
