ExpressCard Slot

The computer is equipped with an ExpressCard/34 slot that reads Express Card/34
formats. ExpressCards are the successors to PCMCIA (PC Cards).

Inserting and Removing ExpressCards

• Press the cover to eject it before inserting an ExpressCard.
• Align the ExpressCard with the slot and push it in until it locks into place.
• To remove an ExpressCard, simply press the card to eject it.
1
Storage Devices, Mouse, Audio & Printer
ExpressCard Slot 2 - 7

ExpressCard
Slot Cover
Make sure you keep the
cover in the Express-
Card slot when not in
use. This will help pre-
vent foreign objects and/
or dust getting in to the
ExpressCard Slot.

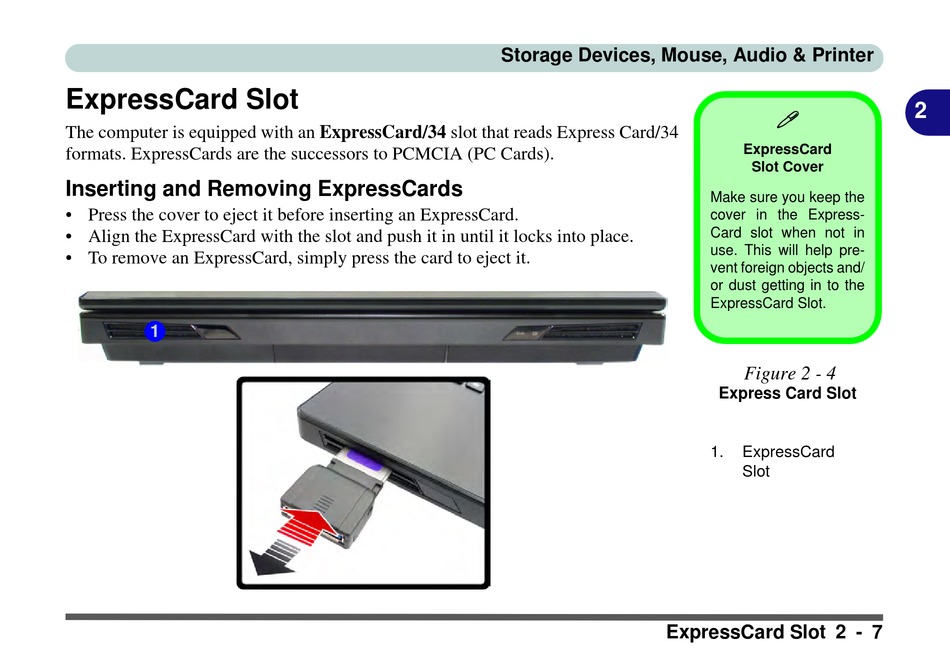

Figure 2 - 4
Express Card Slot
1. ExpressCard
Slot
