RAID Setup (Intel Matrix)

1. As the computer starts up press Ctrl + i to enter RAID configuration menu.
2. Select 1.Create RAID Volume and press Enter.
3. Type the RAID volume name and then press Tab or Enter to advance to the next
field.
4. Specify (use the up and down arrow keys) the RAID level (RAID 0, RAID 1, RAID
5 or Recovery - see
advance to the next field.
Table 7 - 1, on page 7 - 3) and then press Tab or Enter to

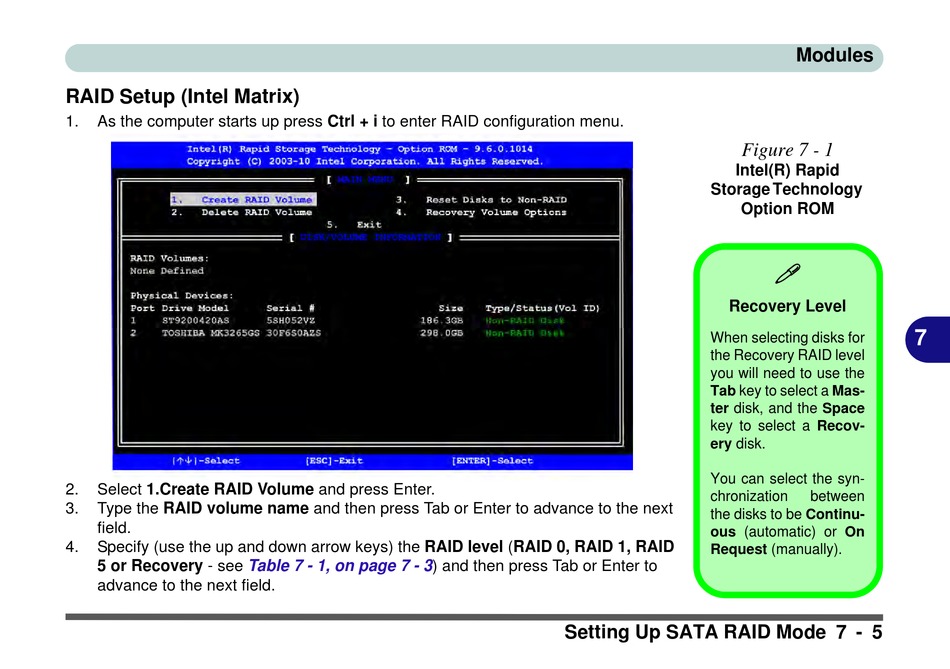

Figure 7 - 1
Intel(R) Rapid
Storage Technology
Option ROM
Recovery Level
When selecting disks for
the Recovery RAID level
you will need to use the
Tab key to select a Mas-
ter disk, and the Space
key to select a Recov-
ery disk.
You can select the syn-
chronization
the disks to be Continu-
ous (automatic) or On
Request (manually).
Setting Up SATA RAID Mode 7 - 5
Modules

7
between
