System Map: Front & Rear Views
6
To prevent your computer from overheating make sure nothing blocks the Vent/Fan In-
take/Outlet while the computer is in use.
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.
1 2 3 4
9
7 8
10
Overheating
Mini-IEEE 1394 Port
5
11
12
System Map: Front & Rear Views 1 - 11
Quick Start Guide

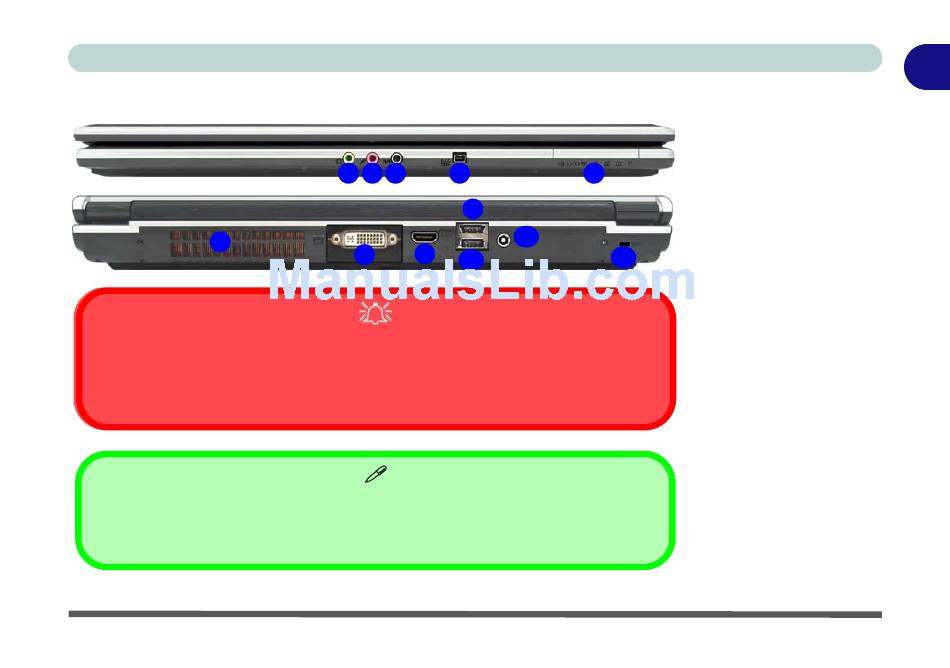

Figure 1 - 4
Front View
1. Headphone-Out
Jack
2. Microphone-In Jack
3. S/PDIF-Out Jack
4. Mini-IEEE 1394 Port
5. LED Indicators
6. Vent/Fan Intake/
Outlet
7. DVI-Out Port
8. HDMI-Out Port
9. *Combined eSATA/
USB Port
10. USB 2.0 Port
11. DC-In Jack
12. Security Lock Slot
*Note that the eSATA port
does not support hot-swap-
ping in Windows XP. Hot-
swapping is only supported in
AHCI mode in Windows Vis-
ta, and requires the installa-
tion of the Intel Matrix
Storage driver (see page 7 -
33).
