Mainboard Overview - Top (Connectors)

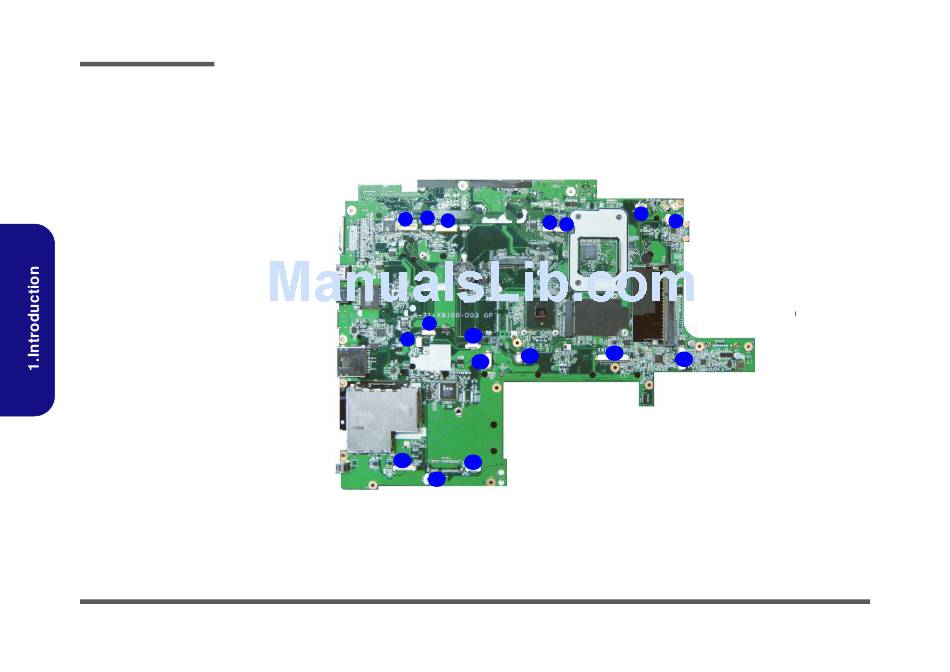

Figure 9
Mainboard Top
Connectors
1. CCD Cable Connector
2. LCD Cable Connector
3. Side L Cable
Connector
4. Inverter Cable
Connector
5. LED Cable Connector
6. Subwoofer Connector
7. Power Button
Connector
8. Game-Key Cable
Connector
9. Bluetooth Module
Connector
10. LED Cable Connector
11. Touch Pad Connector
12. USB Cable Connector
13. Audio Cable
Connector
14. SW Connector
15. Fingerprint Connector
16. Keyboard Cable
Connector
17. Audio Cable
Connector
