Disassembly

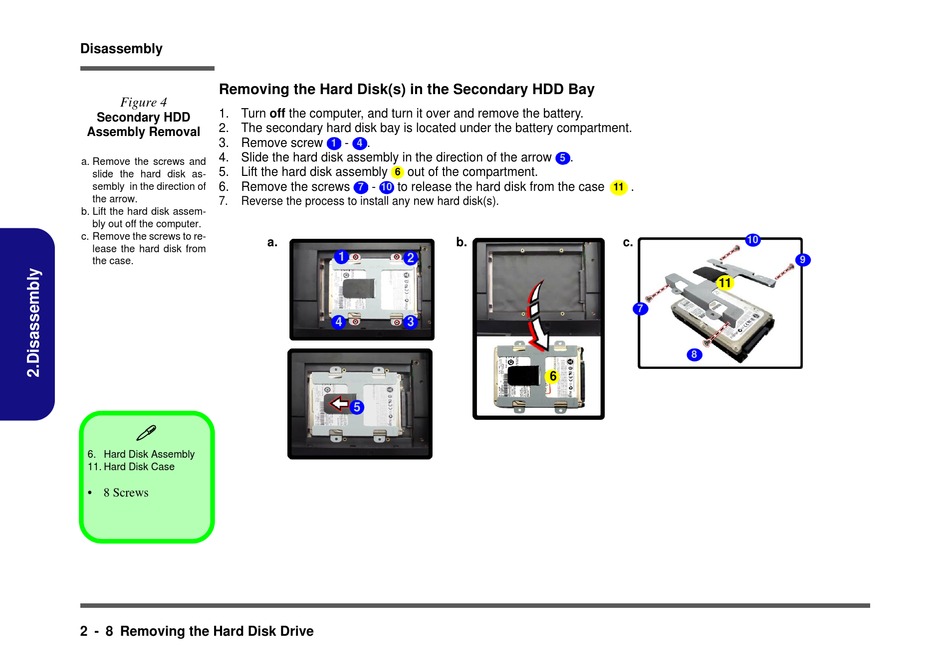

Removing the Hard Disk(s) in the Secondary HDD Bay
Figure 4
1. Turn off the computer, and turn it over and remove the battery.
Secondary HDD
2. The secondary hard disk bay is located under the battery compartment.
Assembly Removal
3. Remove screw
4. Slide the hard disk assembly in the direction of the arrow
a. Remove the screws and
5. Lift the hard disk assembly
slide the hard disk as-
6. Remove the screws
sembly in the direction of
the arrow.
7. Reverse the process to install any new hard disk(s).
b. Lift the hard disk assem-
bly out off the computer.
c. Remove the screws to re-
lease the hard disk from
the case.

6. Hard Disk Assembly
11. Hard Disk Case
• 8 Screws
2 - 8 Removing the Hard Disk Drive
- .
1 4
6 out of the compartment.
- to release the hard disk from the case
7 10
a.
1
2
4 3
5
.
5
.
11
b. c.
6
10
9
11
7
8
