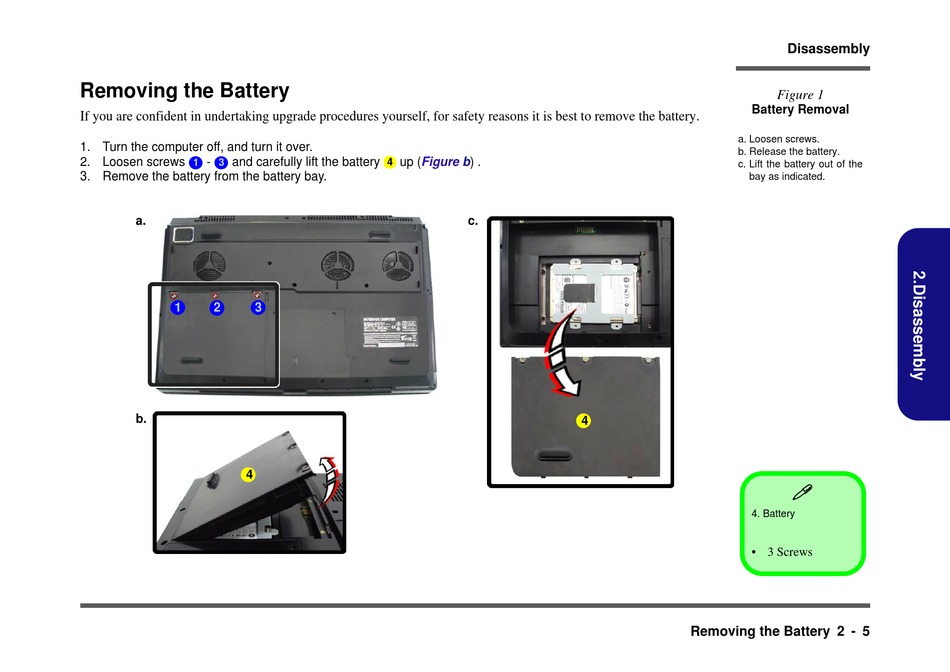

Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery.
1. Turn the computer off, and turn it over.
2. Loosen screws - and carefully lift the battery
1 3
3. Remove the battery from the battery bay.
a.
1 2 3
b.
4
up (Figure b) .
4
c.
Battery Removal
a. Loosen screws.
b. Release the battery.
c. Lift the battery out of the
bay as indicated.
4
4. Battery
• 3 Screws
Removing the Battery 2 - 5
Disassembly
Figure 1

