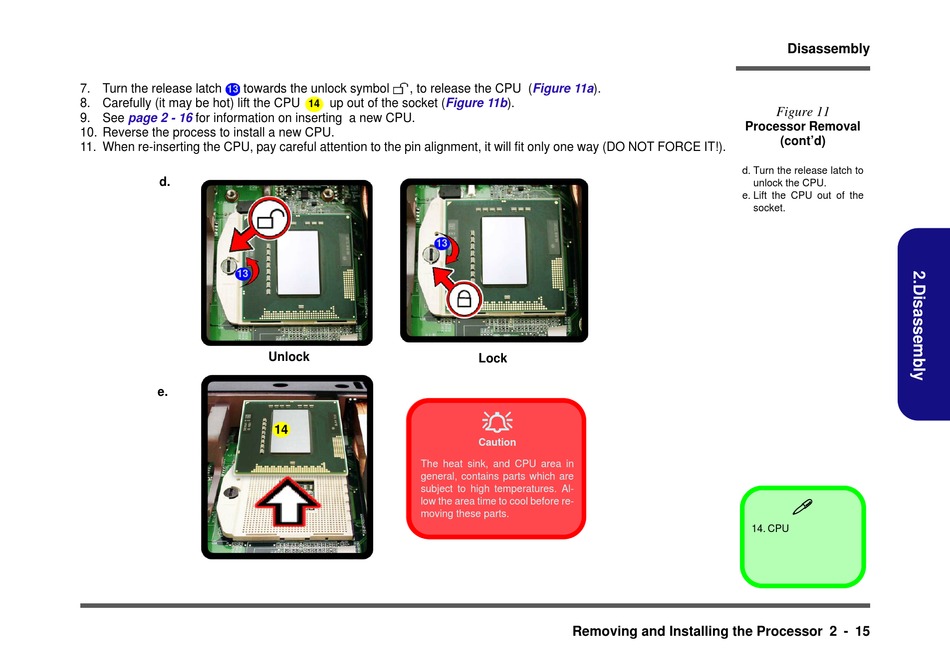

7. Turn the release latch towards the unlock symbol
13
8. Carefully (it may be hot) lift the CPU
9. See page 2 - 16 for information on inserting a new CPU.
10. Reverse the process to install a new CPU.
11. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
d.
13
e.
, to release the CPU
up out of the socket (Figure
14
13
Unlock
14
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al-
low the area time to cool before re-
moving these parts.
(Figure 11a).
11b).
Lock

Caution
Removing and Installing the Processor 2 - 15
Disassembly
Figure 11
Processor Removal
(cont'd)
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.

14. CPU
