EUROCOM X8100 Service Manual page 37

16. Replace the shielding plate, keyboard and screws (make sure to reconnect the keyboard cable).
17. Snap the LED cover module down at the top fo the module at point
j.
22
18. Push the LED cover module down on the left side at point
and snap down to secure it in place.
k.
19. Replace the scews on the bottom of the computer ().
20. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
, and then slide the module to the right (as illustrated)
24
24
& .
22 23
23
Removing the System Memory (RAM) - 2 2 - 13
Disassembly
Figure 9
RAM-2 Module
Removal (cont'd.)

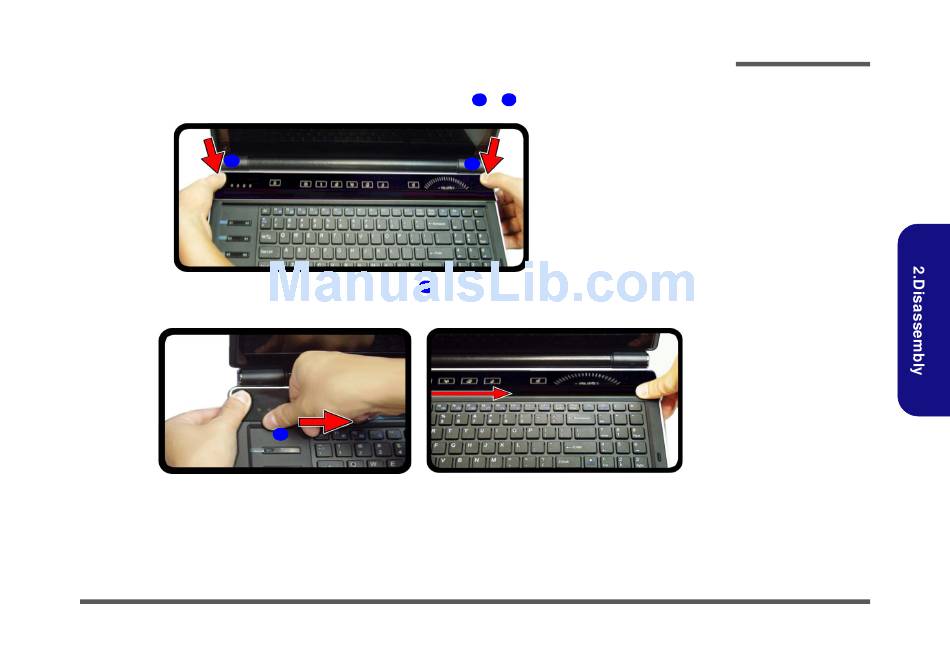

j. Snap down the LED
cover at point 22 &
23.
k. Push the LED cover
on the left side at
point 24 and the slide
toward the right to
secure it in place.
