Install a New Interposer PCA and Add the
Configuration Module
1. Remove all drive cables and jukebox cables from the interposer PCA (see Figure
3-4).
2. Remove the six T-20 screws holding the PCA to the chassis. Remove the PCA
(see arrows on Figure 3-4).

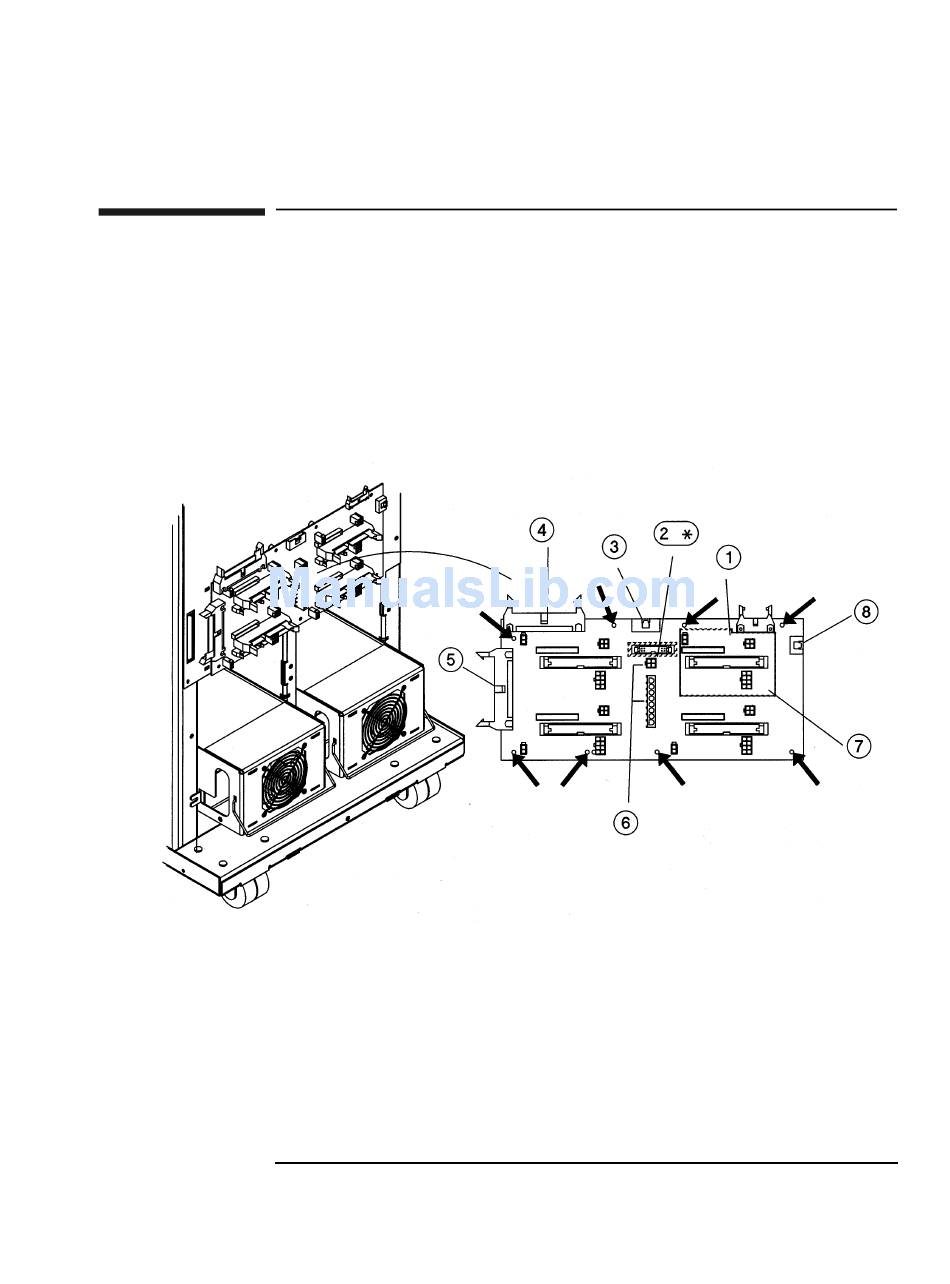

Figure 3-4 Disconnecting Cables and Screws
3. Mount the interposer PCA from the kit.
4. Connect all the jukebox cables to the interposer PCA.
•
•
•
Converting 2.6 Gb Drive Jukeboxes to 5.2 Gb Drive Jukeboxes
Install a New Interposer PCA and Add the Configuration Module
#1 - configuration module socket
#2 - mailslot cable
#3 - SCSI cable
3-7
