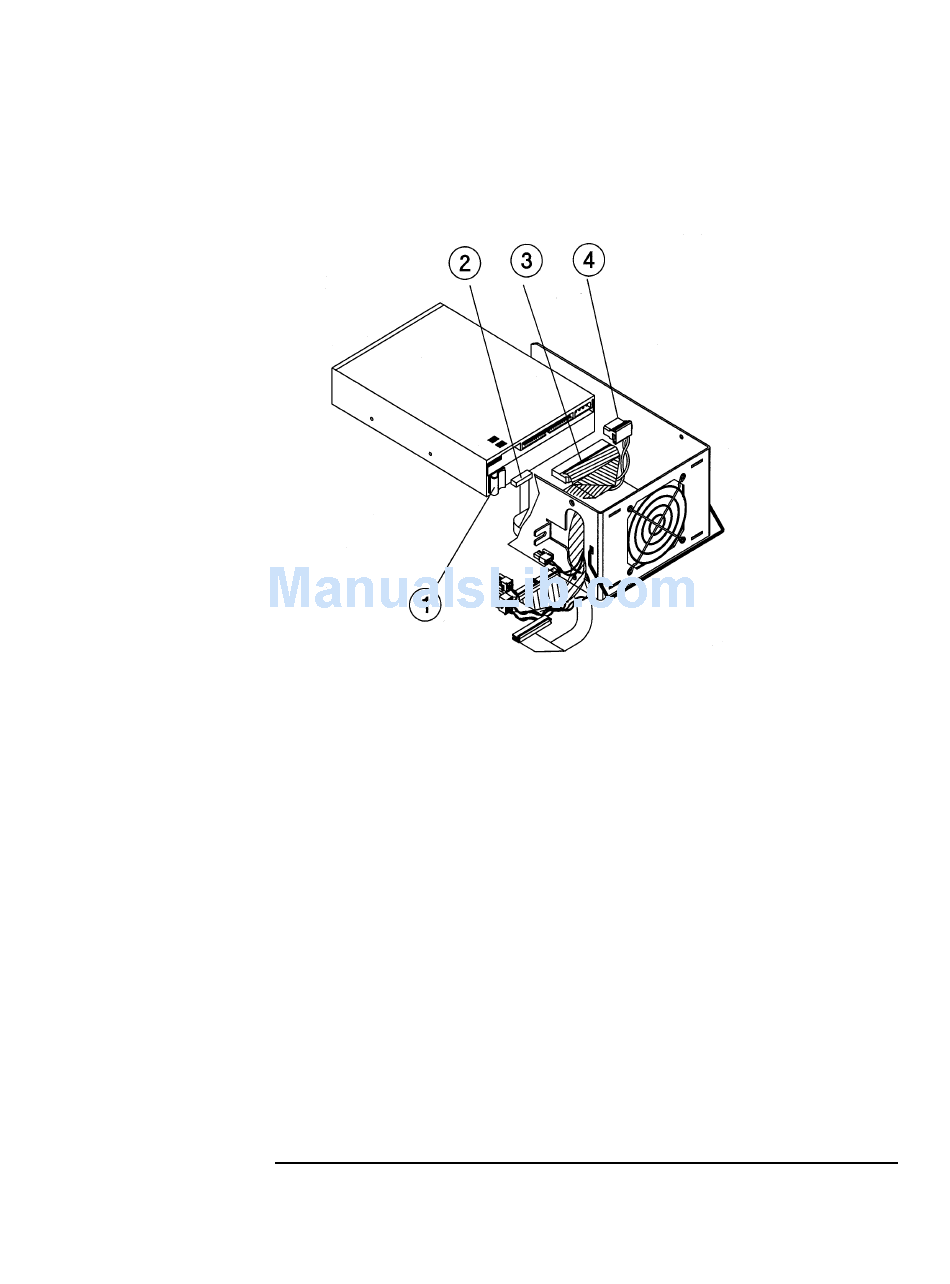

Figure 2-4
Inserting a Drive Into a Drive Enclosure and Connecting Drive Cables
d. As you connect the drive interface cables into their connectors on the rear of
the drive, slide the cables into the cable clamps.
e. Mount the drive in the enclosure with four T-10 screws
f. Replace the top and bottom cable access panels. Secure them with two T-10
screws apiece.
Upgrading Drives and Capacity in 5.2 Gb Drive Jukeboxes
Add Drives
