HP Surestore 100st - Archive Server Conversion Instructions page 22

Upgrading Drives and Capacity in 5.2 Gb Drive Jukeboxes
Add Drives
3. Mount the two new drives into the two drive enclosures supplied in the kit.
a. Remove the adhesive backing on the plastic cable clamp and mount the
clamp at the position shown in #1 on Figure 2-4.
b. Remove the top and bottom cable access panels on the drive enclosure. Two
T-10 screws hold each plate (see #1 on Figure 2-4).

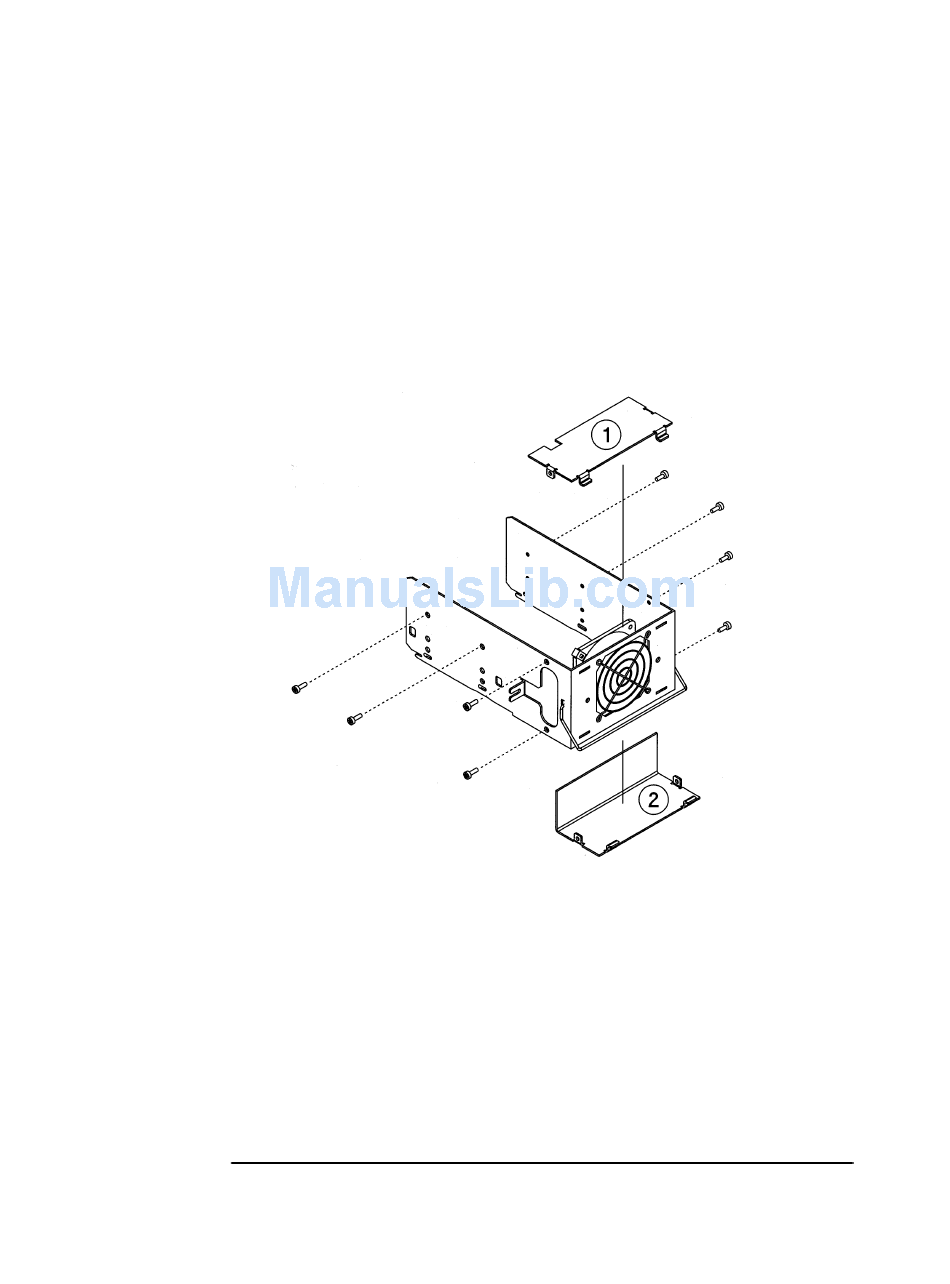

Figure 2-3 Removing Top and Bottom Cable Access Panels
c. Place the new drive into the enclosure at the top position (see #2 on Figure
2-4). Secure with two T-10 screws on each side.
2-6
