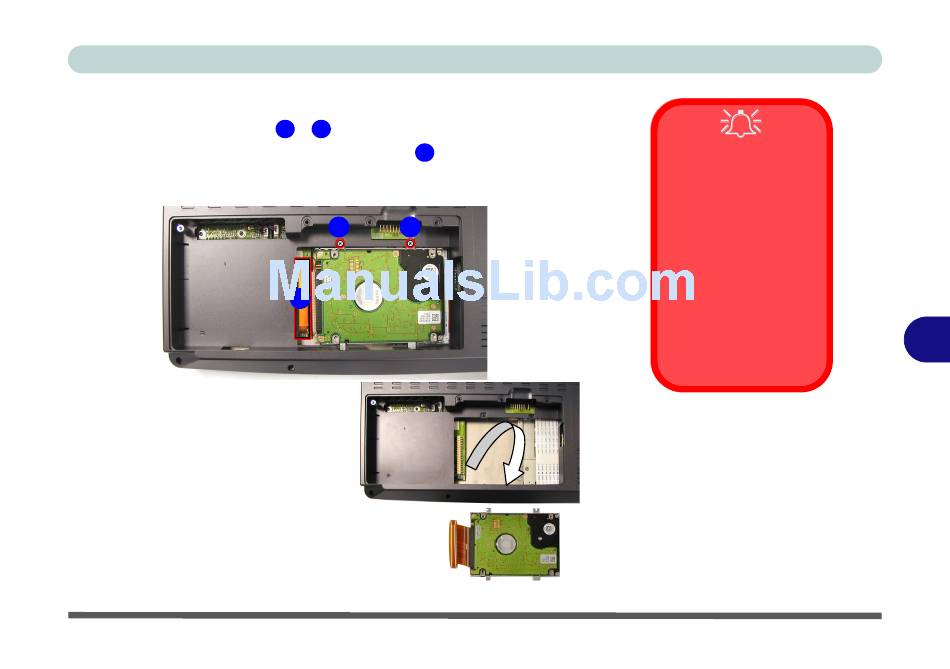

Removing the Hard Disk Assembly

1. Remove screws
1
2. Release the HDD connector cable
3. Remove the HDD assembly from the bay.
- from the HDD assembly.
2
.
3
1 2
3
Upgrading The Computer
The illustrated HDD
cable may differ from
the one in your model
depending on the con-
figuration purchased.
Be careful not to bend
the pins on the hard
disk when removing
the cable.
Removing the HDD
Upgrading the Primary Hard Disk 7 - 9
HDD Cables
Figure 7 - 6
Assembly
