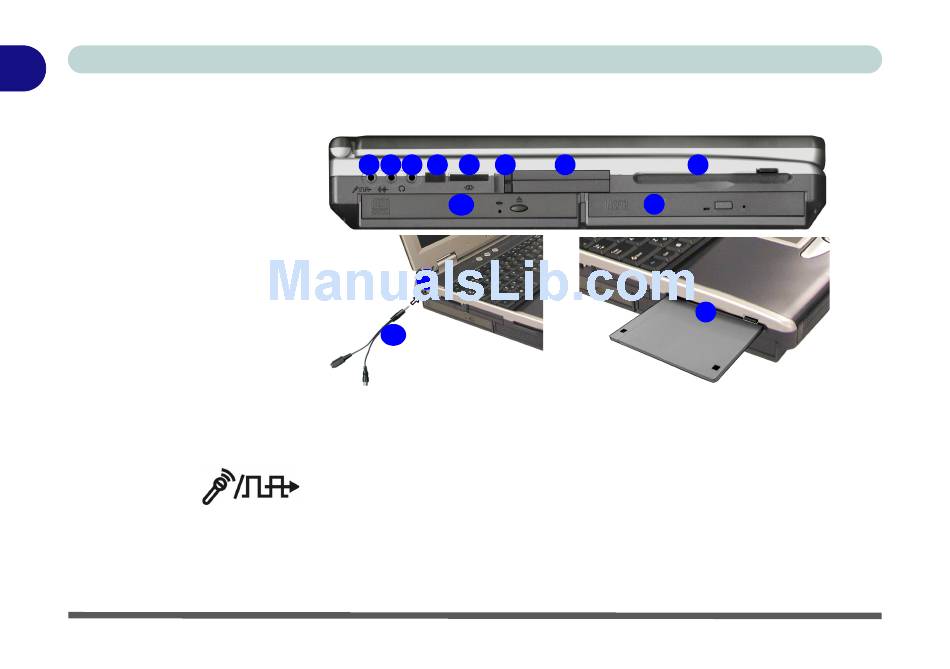

Figure 1 - 5

Left Side View

1. S/PDIF Out Port/
Microphone-In Jack
2. Line-In Jack
3. Headphone-Out
Jack
4. Infrared Transceiver
5. Sony Memory
Stick™ Port
6. PC Card Slot Eject
Buttons
7. PC Card Slot
8. Floppy Disk Drive
9. Primary Drive
Bay (1)
10. Modular Drive
Bay (2)
11. Y-cable for S /PDIF
Out /Microphone-In
1 - 14 Left Side View
Left Side View
1 2 3 4 5
10
1
11

S/PDIF Out Port/Microphone-In Jack

You can use this port for S/PDIF (Sony/Philips Digital Interface For-
mat) output, and to record on your notebook computer with an exter-
nal microphone. The S/PDIF Out Port allows you to connect your
DVD-capable PC to a Dolby AC-3 compatible receiver for "5.1" or
'dts' surround sound. You must use the Y-cable provided to en-
able these functions (S/PDIF connection is to the longer end of the
cable).
