Removing The Extension Label - AT&T MERLIN LEGEND Release 3.1 Installation Manual

Assembling MLX Telephones
Paper
Clip

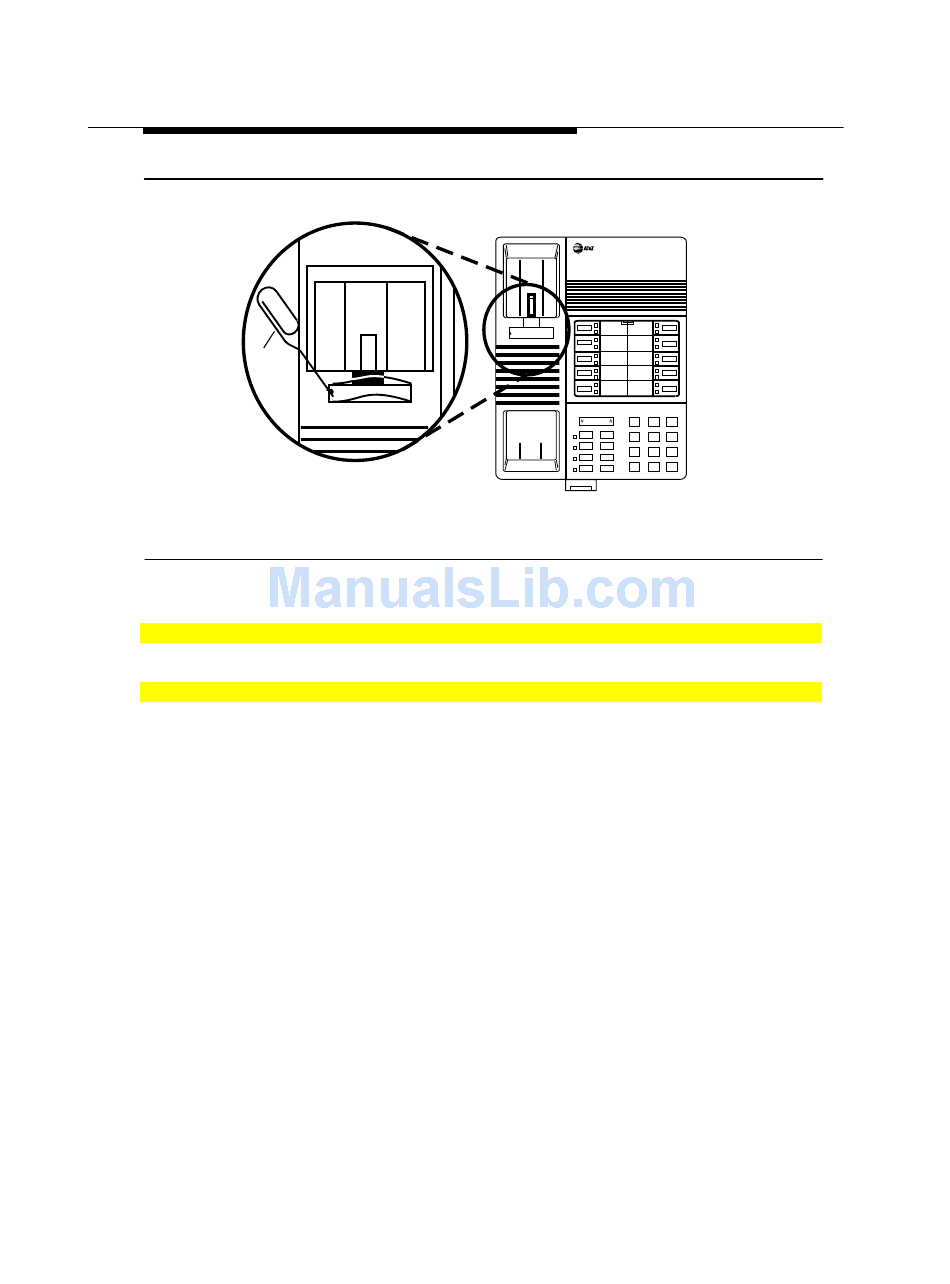

Figure 3–32. Removing the Extension Label
3 Connect the handset.
Insert one end of the coiled H4DU handset cord into the handset.
4 Label the extension identification card.
a Insert a straightened paper clip into the hole on the side of the plastic
cover while holding your finger on the opposite edge; use the paper clip to
push and lift the cover. See Figure 3–32.
