Assembling MLX Telephones

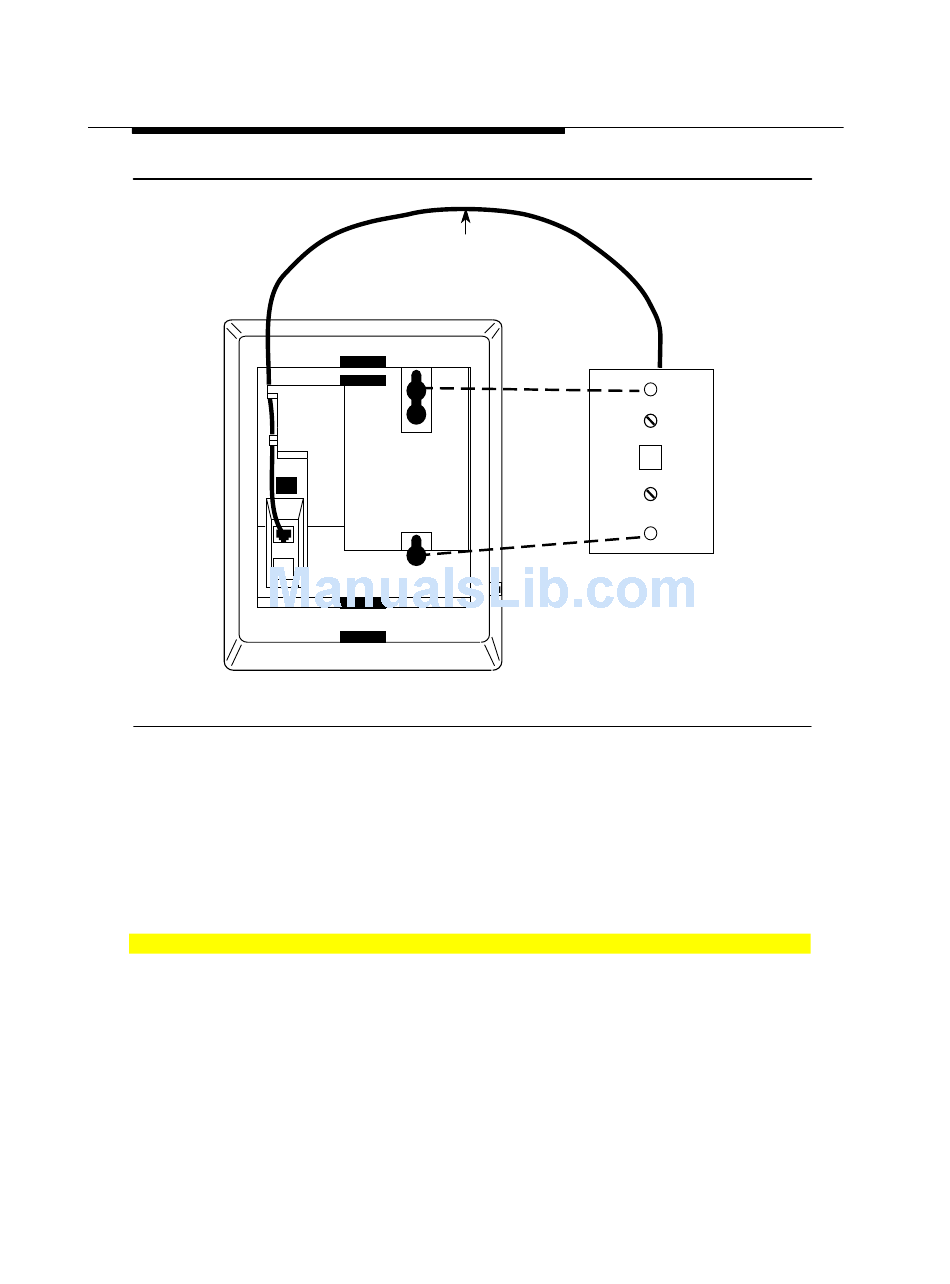

Figure 3–38. Routing the Cord Through the Backplate
f Plug the free end of the cord into the LINE jack on the back of the
telephone. Route the cord through the cord channel above the jack. See
Figure 3–38.
g Position the telephone on the mounting plate studs and then slide the
telephone down to lock it in place. To remove the telephone, slide it up
and off.
8 Label the button assignment card.
a Pull the tab at the top of the plastic cover toward you.
3–56

Installing Telephones and Adjuncts

D8W
Mounting
Plate
630B
