Installing Multi-Function Modules
Socket
Connector
Pins
Line Jack

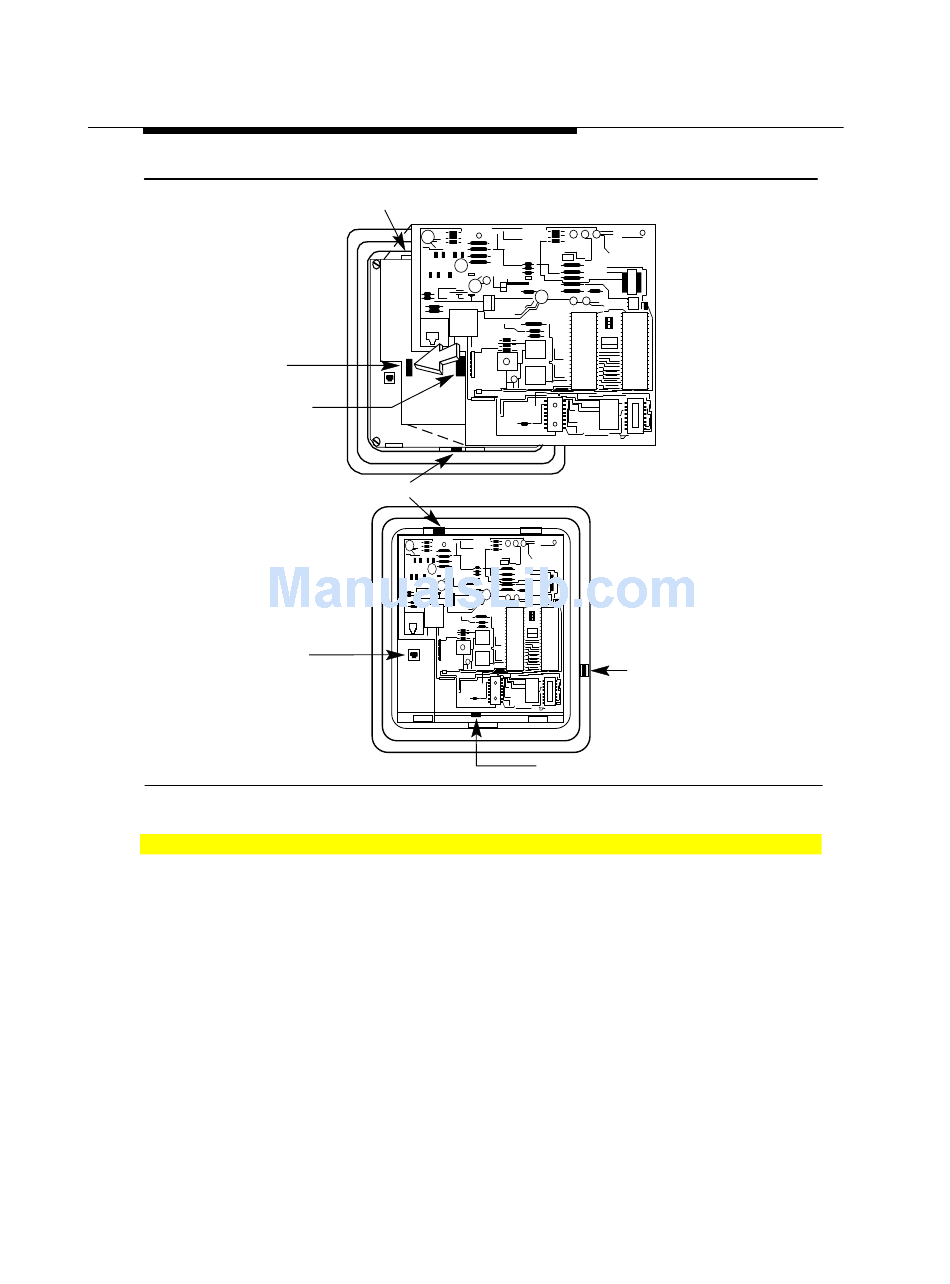

Figure 3–9. Installing an MFM Module
5 Install the new MFM. See Figure 3–9.
a Hold the MFM circuit board by the edges with the long connector pins
facing the socket. Take care not to touch the connector pins.
b Lower the MFM to insert the pins into the socket in the telephone base.
c Press firmly on the MFM board to snap the locking tabs into place. The
connector pins and tabs must be secure.
Locking Tab
.
. .
.. .
.
.
. .
. .
.
Locking Tab
.
.
.
. .
.
.. .
. .
. .
.
. .
. .
.
.
.
.
.
.
Installing Telephones and Adjuncts
.
.
.
. .
.
.
.
. . .
. .
.
.
. .
.
.
.
.
.
.
.
.
.
. .
.
.
. . .
. .
.
Handset Jack
.
.
.
Locking Tab
3–11
