Wiring
Building the Wiring Field
Build the wiring field between the network interface and the control unit using
110AB1-100JP12 termination blocks with modular jacks and associated
hardware. Figure 4–2 shows the hardware you need, including 110AB1-
100JP12 termination blocks with modular jacks, 110A1 wire troughs, D-rings,
and D2R cords.
D-RING
1
2
3
4
5
3
1
1
6
4
2
4

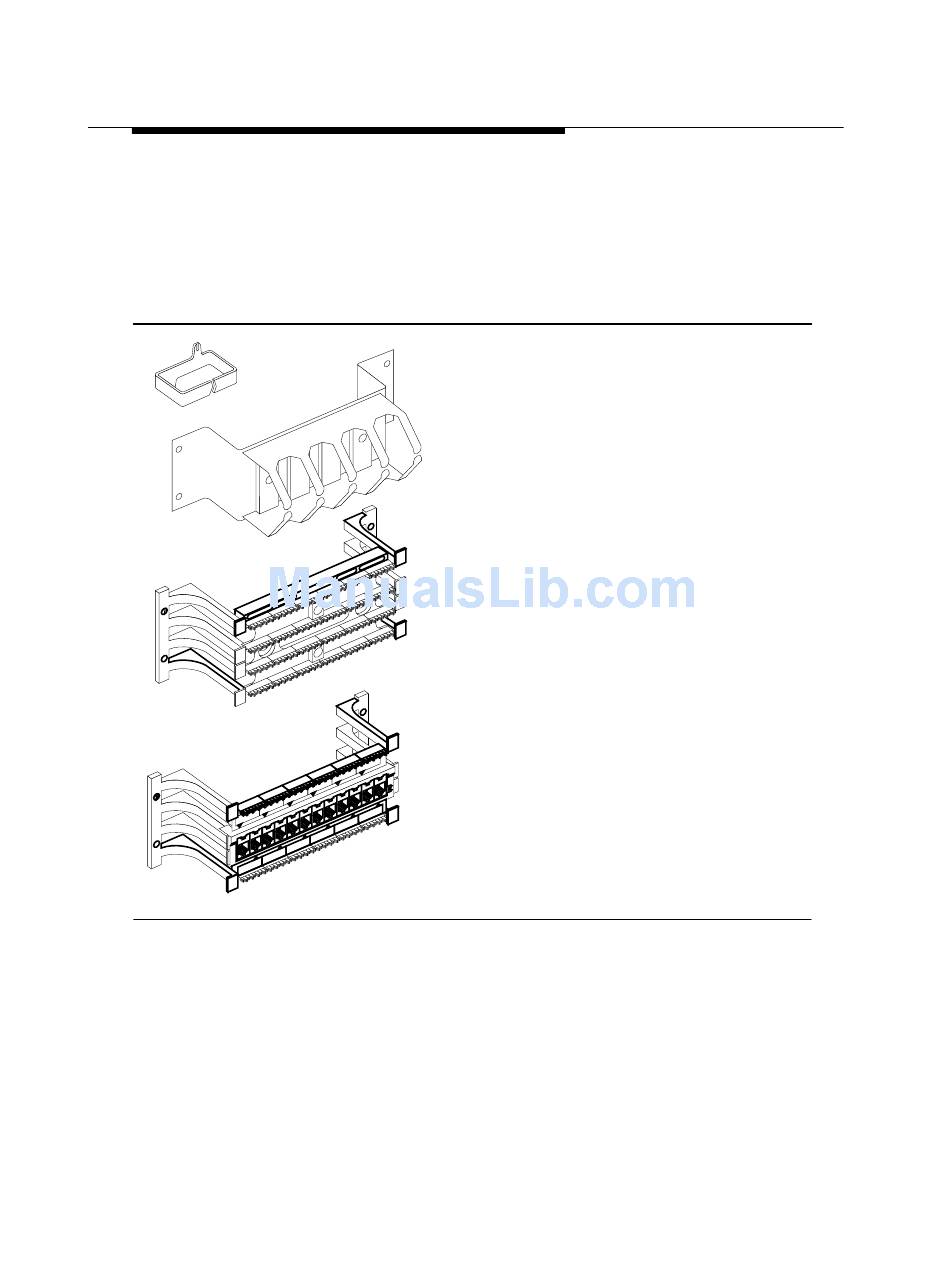

Figure 4–2. RJ21X Wiring Field Hardware
4–6
Connecting the Control Unit to the Network Interface
110A1 WIRE TROUGH
110 AB1-100FT
FIELD TERMINAL BLOCK
1 1
9
7
1 2
1 0
8
110AB1-100JP12 TERMINAL BLOCK
