Connecting The Line Cords - AT&T MERLIN LEGEND Release 3.1 Installation Manual

Assembling MLX Telephones
To
Adjunct
Cord Channel
D4BU Connects to
TEL/OTHER
Jack
Line

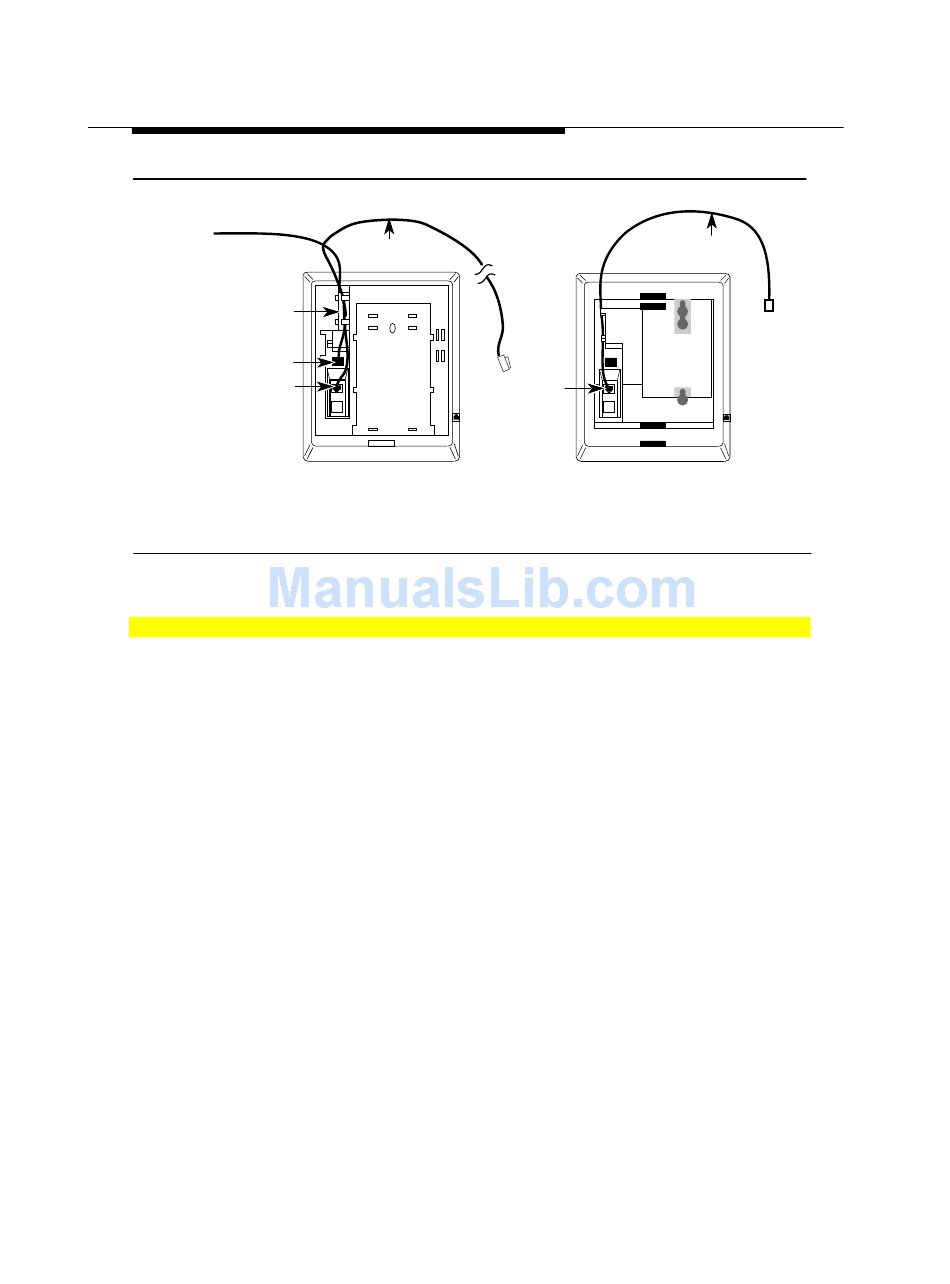

Figure 3–31. Connecting the Line Cords
2 Connect the line cords. See Figure 3–31.
a Plug one end of the D8W cord into the LINE jack on the bottom of the
phone.
b Route the D8W cord through the cord channel on the back of the
telephone.
c If the telephone is for desktop use, turn it face up and plug the D8W cord
into the wall jack.
d Insert the other end of the coiled H4DU handset cord into the jack on the
side of the telephone.
3–50
Installing Telephones and Adjuncts
D8W
MLX-10 TM
Desk Telephone
D8W
To
400B
Line
MLX-10 TM
Wall-Mounted Telephone
