Connecting a Printer to the Control Unit
CAT PLUS Connections
Using Same AC Outlet
SMDR Port
Short Cord

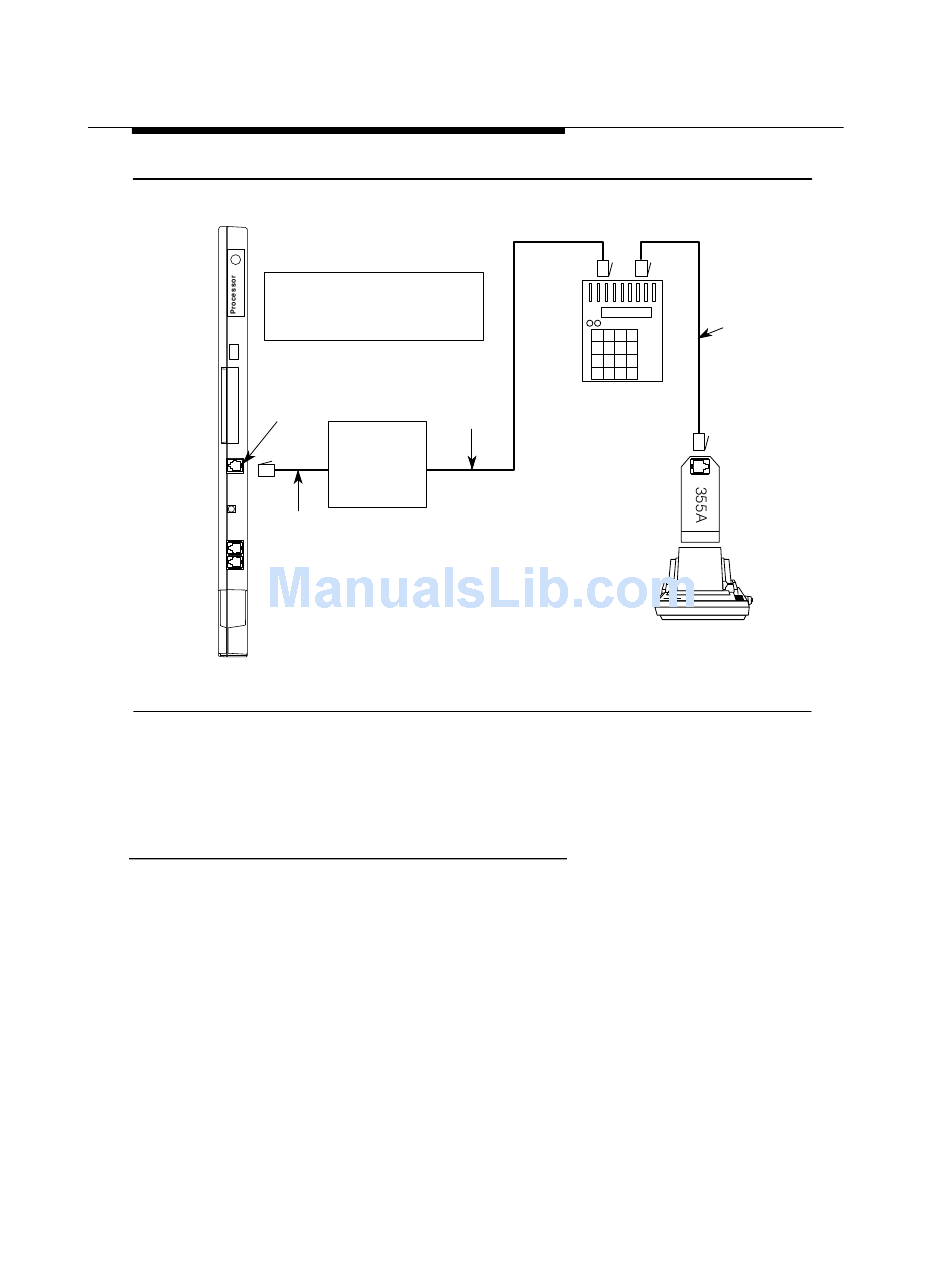

Figure 5–3. Connecting a CAT and Printer on the Same AC Outlet
Connecting a CAT and Printer on a Different
AC Outlet
If the printer is not grounded to the same AC outlet as the control unit or CAT
or if the printer is more than 50 ft. (15.2 m) from the control unit, use the
following procedure to connect a CAT serial printer to the control unit.
5–10
Installing the PC, CAT, or Printer
Long Cord
Z200A
EMI
Filter
D8W-87
CAT PLUS Terminal
CAT Printer
