Installing Adjuncts
D4BU Connects to

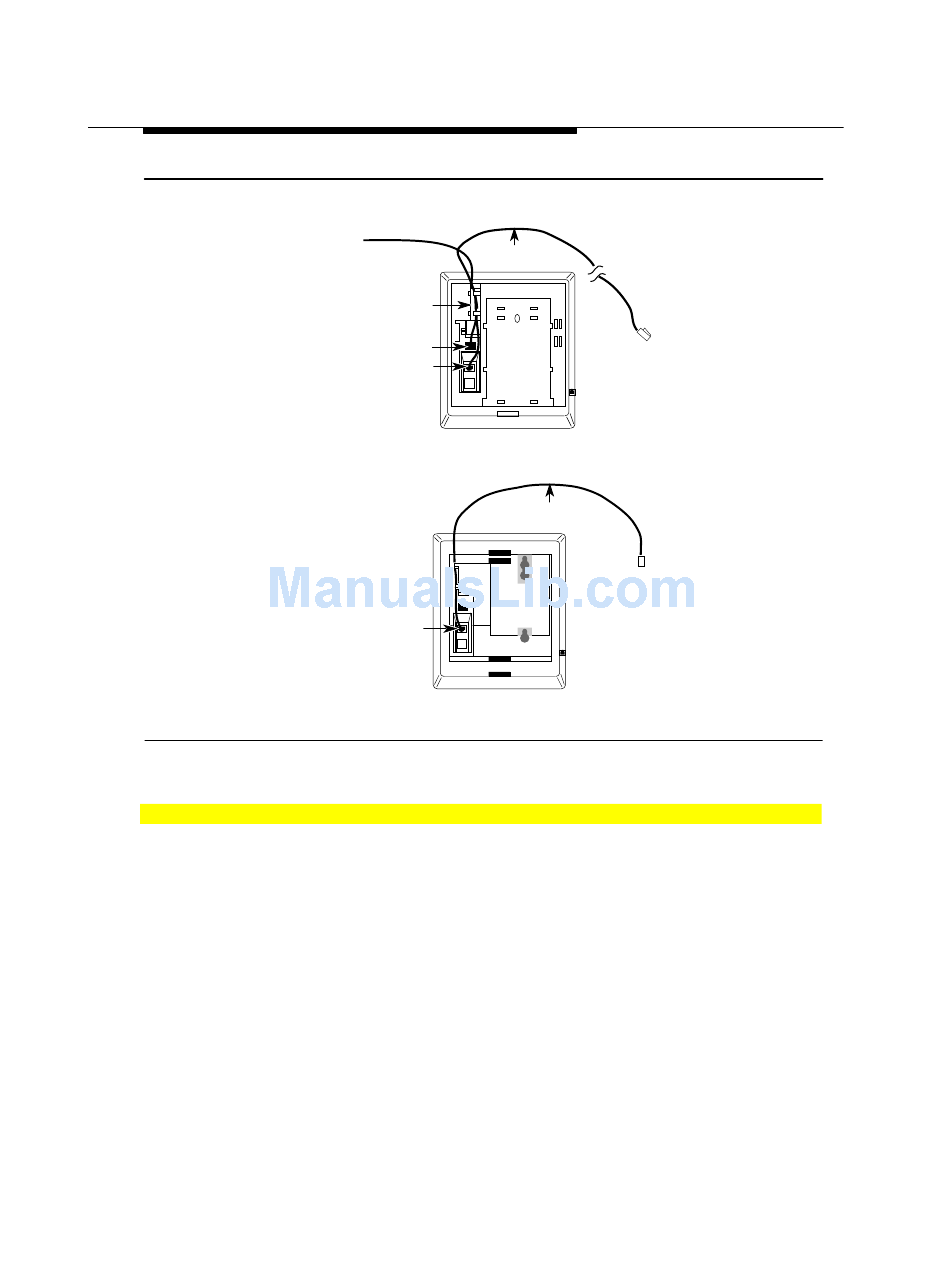

Figure 3–20. Routing the Cord(s) Through the Cord Channel
4 To connect an adjunct to a single-line telephone:
a Connect a 26A2 bridging adapter to the telephone.
b Connect the cord from the adjunct to the bridging adapter.
c Reconnect the cord from the control unit to the bridging adapter.
d Go to Step 7.
To
Adjunct
D8W
Cord Channel
TEL/OTHER
Jack
Line
MLX-10
Desk Telephone
Line
MLX-10
Wall-Mounted Telephone
Installing Telephones and Adjuncts
To
400B
TM
D8W
TM
3–23
