Chapter 2 Cisco IOS XR Basic Configuration Management
For additional information on configuring terminal services, including terminal servers and templates,
Tip
refer to Implementing Physical and Virtual Terminals on Cisco IOS XR Software in the Cisco IOS XR
Series System Management Configuration Guide.

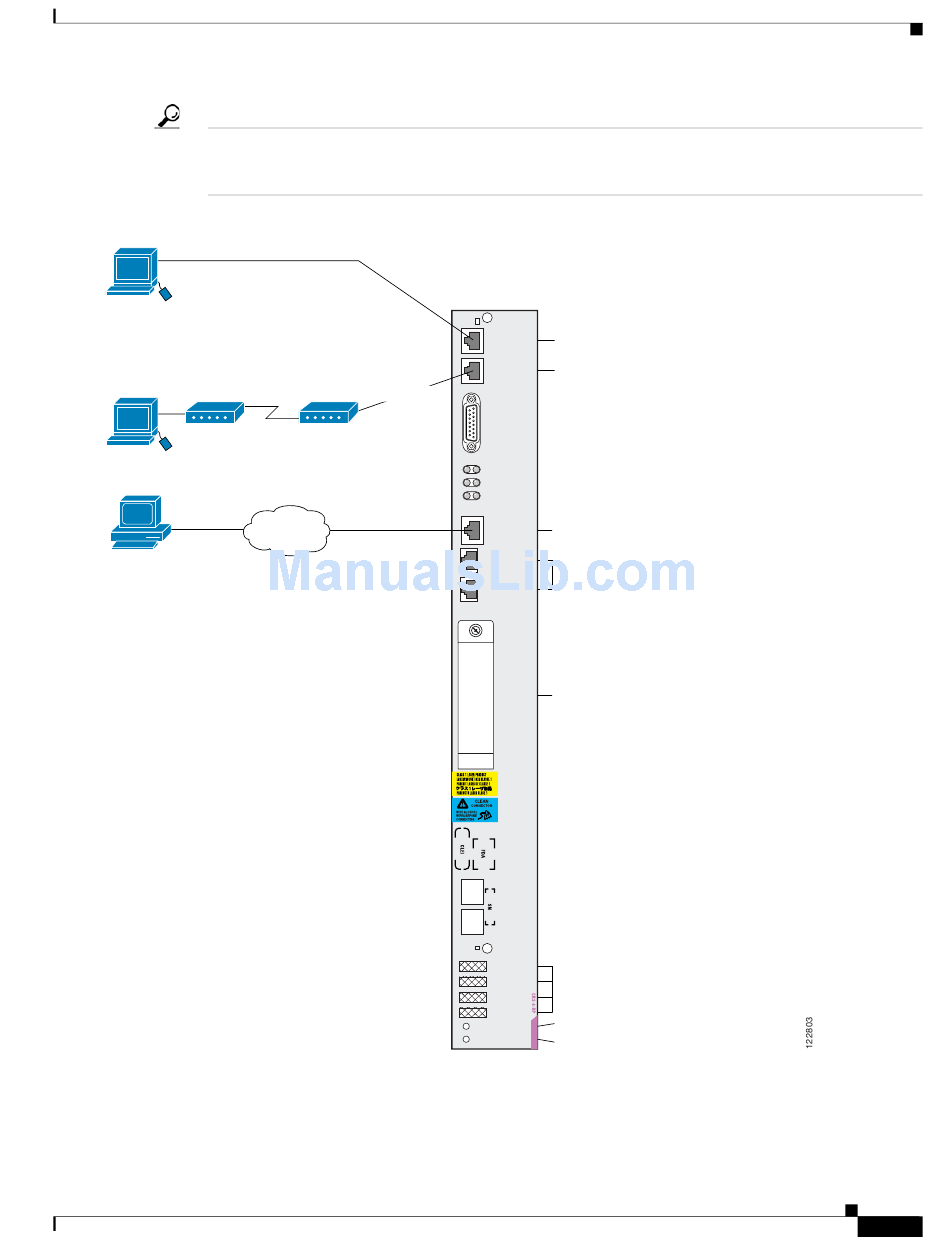

Figure 2-2 Communication Ports on the RP for a Cisco CRS-1 8-Slot Line Card Chassis
RJ-45 cable
Local terminal or
terminal server for
CLI communication.
Remote terminal for
CLI communication.
Remote CLI, CWI, XML,
or SNMP communication.
Remote file storage.
RJ-45 cable
Ethernet cable
Network
Connecting and Communicating with the Router
Terminal connection
Console
Modem connection
AUX
ALARM
PID/VID
CRITICAL
MAJOR
MINOR
MGMT
Management Ethernet connection
ETH
for out-of-band network communication
CNTL
Optical GigE for control plane:
ETH 0
CNTL not user-configurable
ETH 1
PC
User-removable flash disk1:
CARD
stores installation PIE files.
A second internal Flash disk0:
stores installed software and
active configurations.
EXT
CLK 1
EXT
CLK 2
LED status
displays
(alphanumeric)
Primary RP (On=Primary)
Primary
Status
Card status (Green=OK)
