Outputting negative images

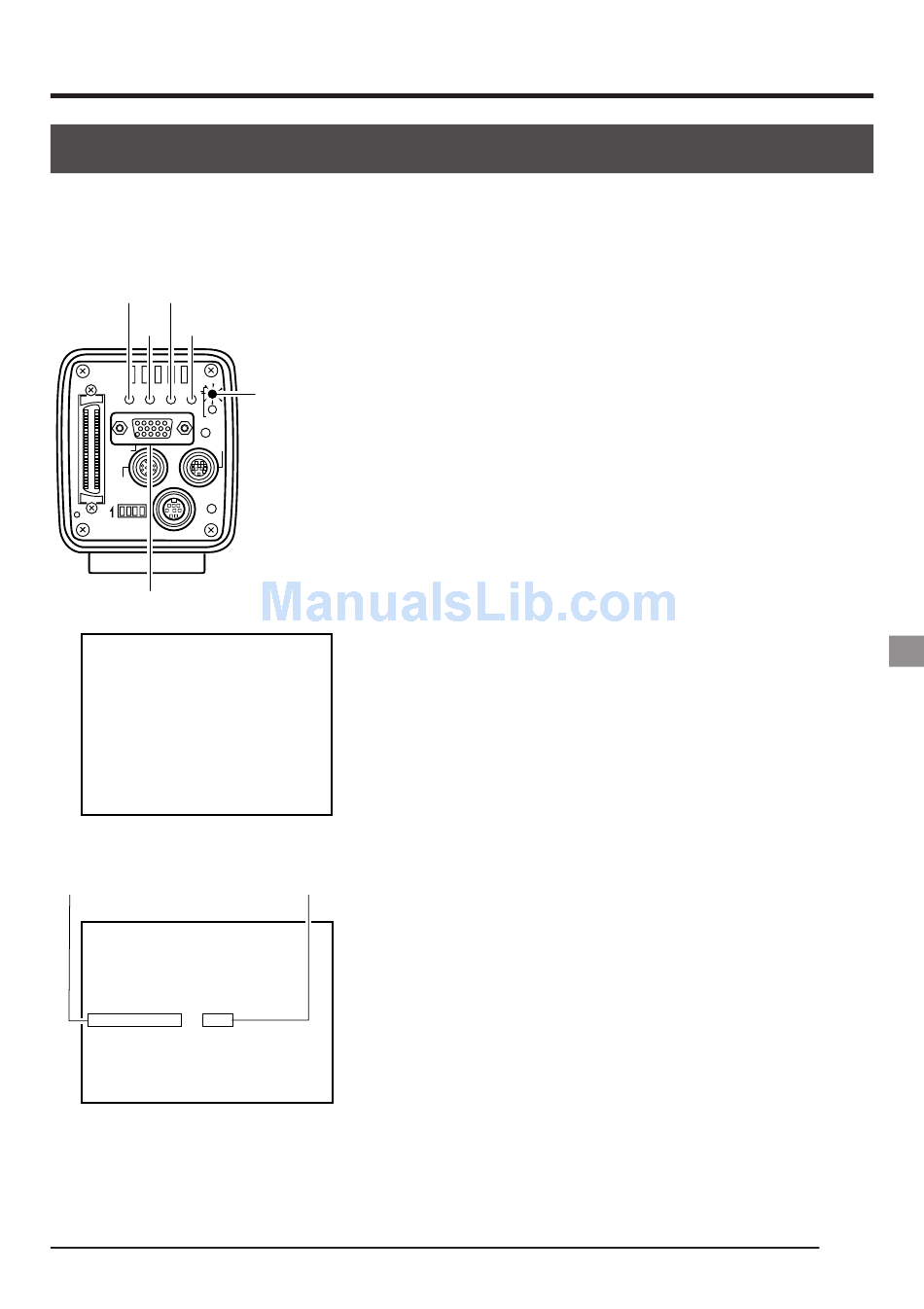

It is possible to change the video signal outputted through the MONITOR terminal of this unit as
negative video.
MENU DOWN
UP MODE/SET
SCSI
REC
SEND AW/SEL MODE
MENU UP DOWN SET
PLAY
FREEZE
LENS
MONITOR
REMOTE
DC IN
POWER
ON 1 2 3 4
SEE INSTRUCTION MANUAL
MONITOR terminal
- - - REC MENU - - -
1 : EXPOSURE . .
2 : WH I TE BA L ANCE . .
3 : FREEZE . .
4 : PROCESS . .
5 : SYSTEM SET T I NG . .
REC MENU screen
Menu item
- - - SYSTEM S ET T I NG
ON SCREEN
: OF F
FRZ D I SP L AY : O N
SEND PRI O R IT Y : MO
MON I TO R : F I NE
: 0.7 V
BAR L EVE L
NEGA : ON
ET . .
MENU RE S
MORY CL EA
V I DEO ME
T ME AD J UST I
SYSTEM SETTING screen
1.
Press the MODE button to enter the REC mode (REC
LED on), then press the MENU button to display the
REC MENU screen.
2.
REC LED Use the DOWN button to select 5. SYSTEM SETTING
(displayed in purple when selected), then press the SET
button.
The SYSTEM SETTING screen will appear.
3.
Press the DOWN button to select NEGA (NEGA will be
displayed in purple when selected), then press the SET
button.
The set value will be displayed in purple, indicating that
it can be changed.
4.
Press the DOWN button to set the value to ON.
The output video will be negative video.
