2. Before recording (continued)

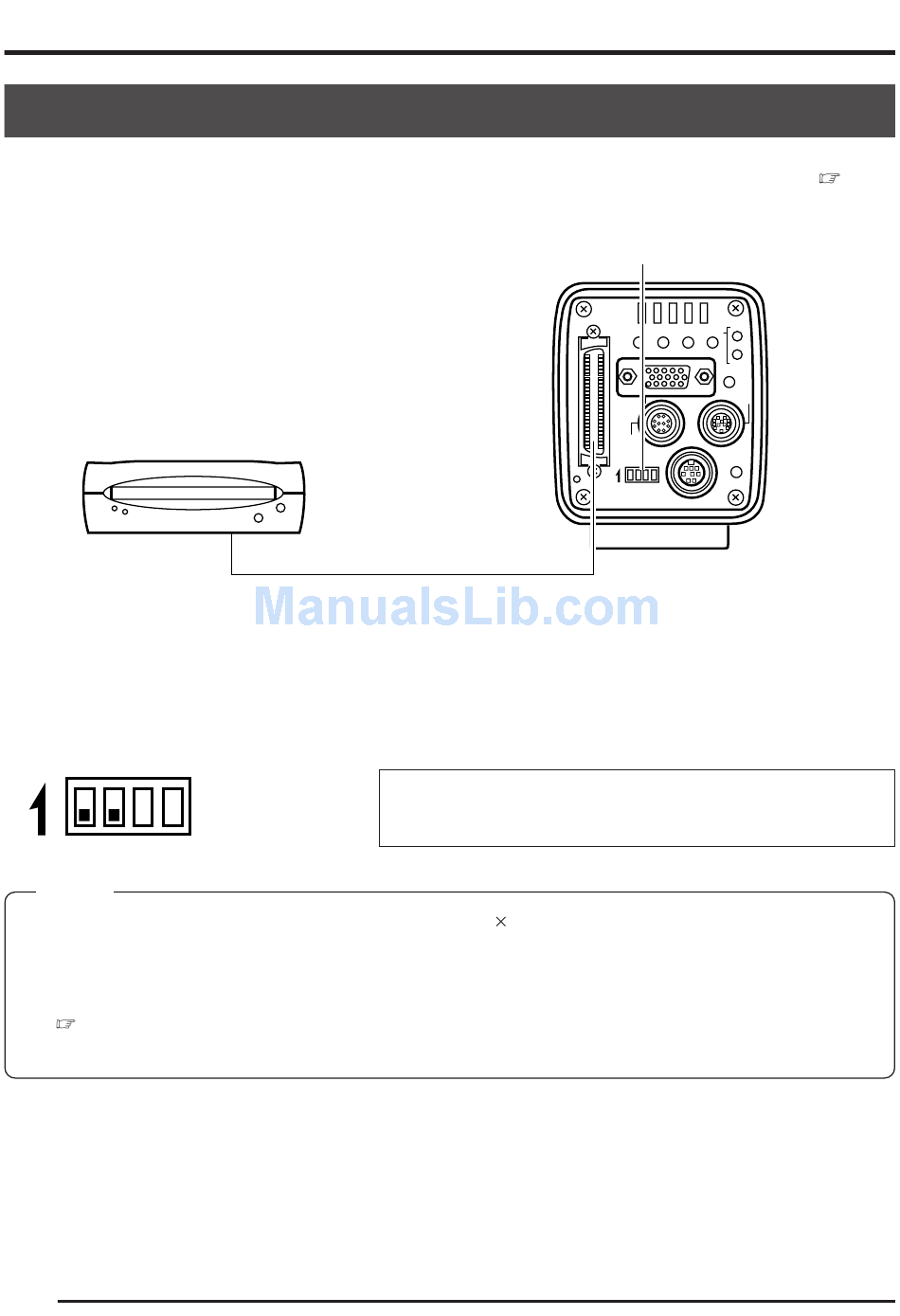

Connecting an MO drive unit

It is possible to output image data stored in the main unit memory to an MO drive unit. (
36 Saving images from the memory to an MO disk)
@ @ @ @ @ @
To directly connect the MO drive to the main unit, set the dip switches on the rear of the main unit
as shown below.
ON 1 2 3 4
MEMO
• The image data outputted to an MO drive will be 1360 1024 pixels, regardless whether the monitor
in use is VGA or SXGA, or whether the VGA mode is set to FINE or DRAFT.
• The maximum allowed length of the SCSI cable is 3m.
• When connecting an MO drive to a PC, separate setting of the SCSI ID is required.
( Page 64 7. Connecting to a PC)
• It is not possible to simultaneously output the image data to a printer and MO drive.
E20
(SCSI : 7)
Do not set the ID of the MO drive side to other than
7.
Dip switches
SCSI
REC
SEND AW/SEL MODE
MENU UP DOWN SET
PLAY
FREEZE
LENS
MONITOR
REMOTE
DC IN
POWER
ON 1 2 3 4
SEE INSTRUCTION MANUAL
SCSI terminal
