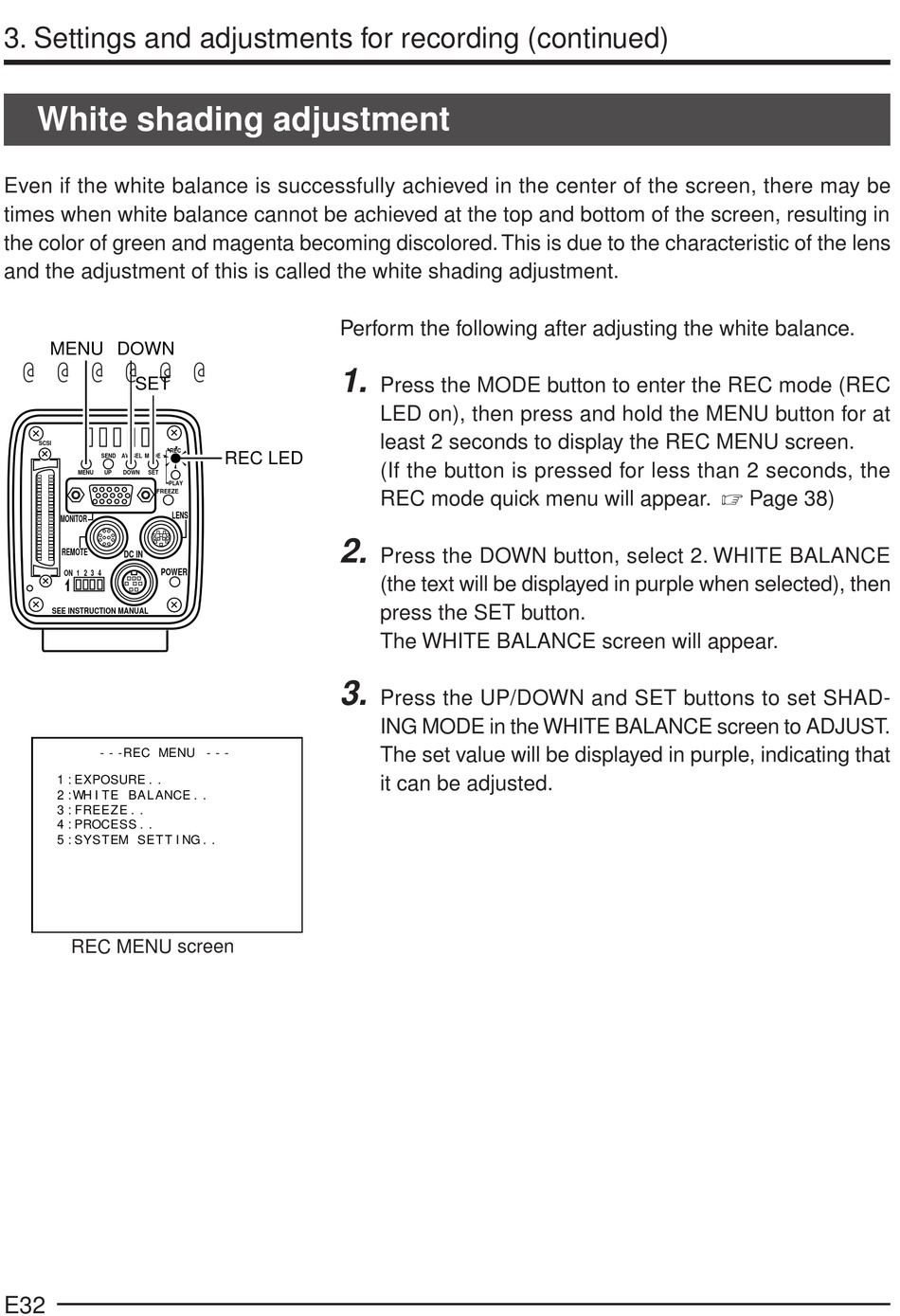

White shading adjustment

Even if the white balance is successfully achieved in the center of the screen, there may be
times when white balance cannot be achieved at the top and bottom of the screen, resulting in
the color of green and magenta becoming discolored. This is due to the characteristic of the lens
and the adjustment of this is called the white shading adjustment.
MENU DOWN
@ @ @ @ @ @
SET
SCSI
REC
MODE
SEND AW/SEL
MENU UP DOWN SET
PLAY
FREEZE
LENS
MONITOR
REMOTE
DC IN
POWER
ON 1 2 3 4
SEE INSTRUCTION MANUAL
- - - REC MENU - - -
1 : EXPOSURE . .
2 : WH I TE BA L ANCE . .
3 : FREEZE . .
4 : PROCESS . .
5 : SYSTEM SET T I NG . .
REC MENU screen
E32
Perform the following after adjusting the white balance.
1.
Press the MODE button to enter the REC mode (REC
LED on), then press and hold the MENU button for at
least 2 seconds to display the REC MENU screen.
REC LED
(If the button is pressed for less than 2 seconds, the
REC mode quick menu will appear.
2.
Press the DOWN button, select 2. WHITE BALANCE
(the text will be displayed in purple when selected), then
press the SET button.
The WHITE BALANCE screen will appear.
3.
Press the UP/DOWN and SET buttons to set SHAD-
ING MODE in the WHITE BALANCE screen to ADJUST.
The set value will be displayed in purple, indicating that
it can be adjusted.
Page 38)
