4. Basic operations

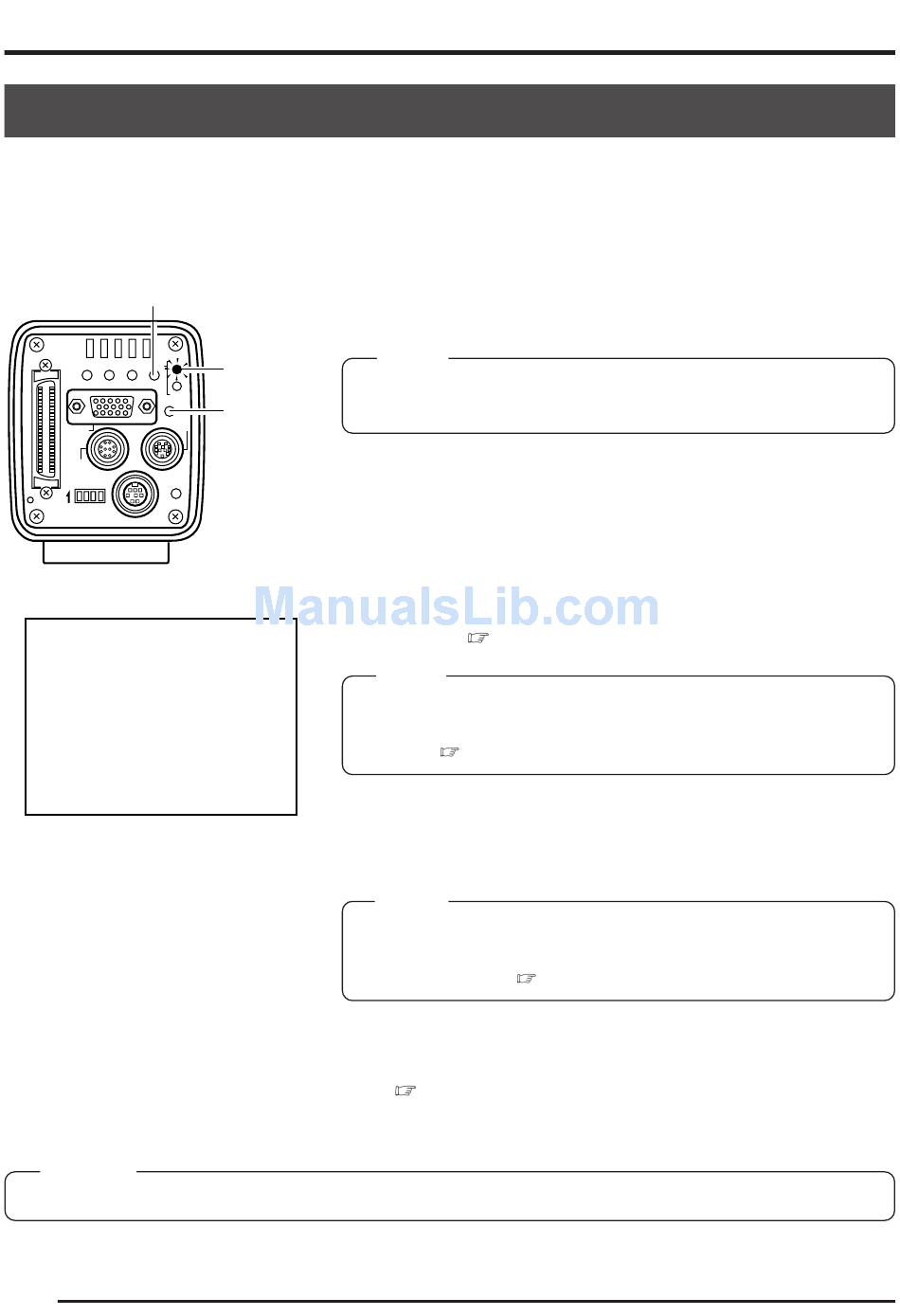

Recording images to the main unit memory

The main unit is capable of storing 5 images in the VGA mode and 4 images in the SXGA mode
to the main unit memory.
Exceeding the maximum number of images stored will replace the oldest image with the latest.
MODE
SCSI
@ @ @ @ @ @
REC
MODE
SEND AW/SEL
MENU UP DOWN SET
PLAY
FREEZE
LENS
MONITOR
REMOTE
DC IN
POWER
ON 1 2 3 4
SEE INSTRUCTION MANUAL
FREEZE display
CAUTION
Images stored in memory will be deleted when the power is turned off.
E34
1.
Press the MODE button to enter the REC mode.
The REC LED will light.
MEMO
REC LED
The unit will automatically enter the REC mode when the power
is turned on.
FREEZE
2.
Press the FREEZE button.
Images outputted through the MONITOR terminal will
become a still image and stored in the main unit memory.
In addition, the REC LED will flash.
At this time, FREEZE will appear in the screen. To dis-
able the message from appearing, set FRZ DISPLAY
to OFF (
MEMO
The character display contents of the monitor screen can be
changed by selecting ON SCREEN in the SYSTEM SETTING
screen. (
3.
FREE ZE Cancel FREEZE
Press the FREEZE button once more to cancel the still
image.
MEMO
It is possible to set the unit so that the still image is automati-
cally cancelled after 5 seconds. Set CANCEL in the FREEZE
screen to AUTO. (
4.
Output the image to an MO drive or printer, as neces-
sary.
(
page 57).
Page 57)
Page 53)
Pages 36 and 37)
