1. Introduction (continued)

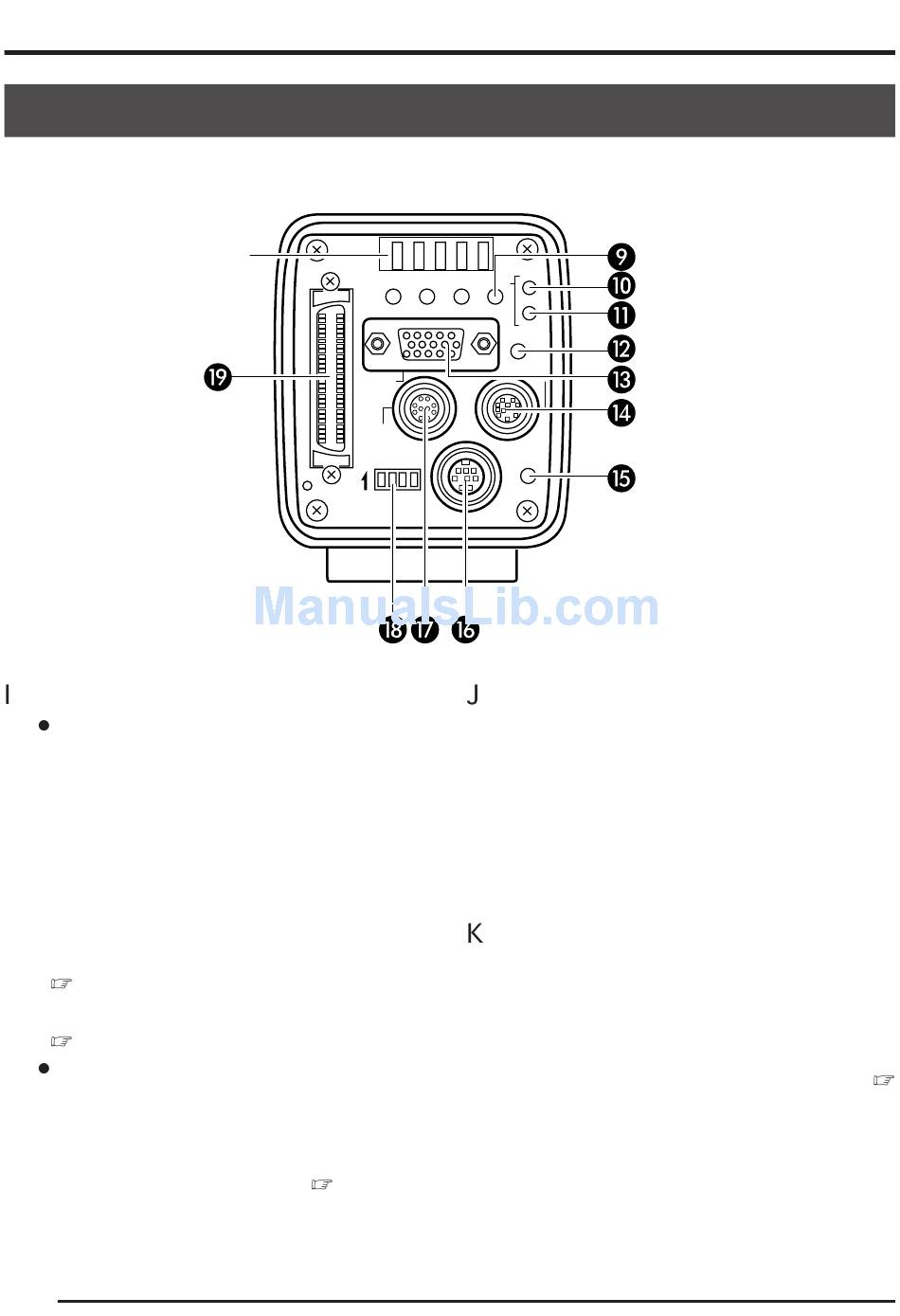

Part names and their functions (continued)
[Rear (continued)]
Ventilation hole
@ @ @ @ @ @
MODE/SET button
[MODE]
Pressing this button each time will switch
between the REC (record)* and PLAY
(playback) modes. The default mode
when the power is turned on is REC.
* REC mode is the condition which the unit
has either captured an image or is ready
to write an image to the main unit memory.
Recording images to the main unit memory
( page 34)
Playing back images from the memory
( page 35)
[SET]
While the menu screen is being displayed,
use this button to select a submenu or
confirm a selected item or set value.
Setting in the menu screen (
E10
SCSI
SEND AW/SEL MODE
MENU UP DOWN SET
MONITOR
REMOTE
DC IN
ON 1 2 3 4
SEE INSTRUCTION MANUAL
page 44)
REC
PLAY
FREEZE
LENS
POWER
REC display lamp
This lamp lights when in the REC* mode.
During FREEZE, this display lamp will flash.
* During the REC mode, camera images
are outputted to the MONITOR terminal.
Pressing the FREEZE button at this time
will save the image to the main unit
memory.
PLAY display lamp
This lamp lights when in the PLAY* mode.
* During the PLAY mode, images saved in
the main unit memory are played back
by outputting to the MONITOR terminal.
Playing back images from the memory (
page 35)
