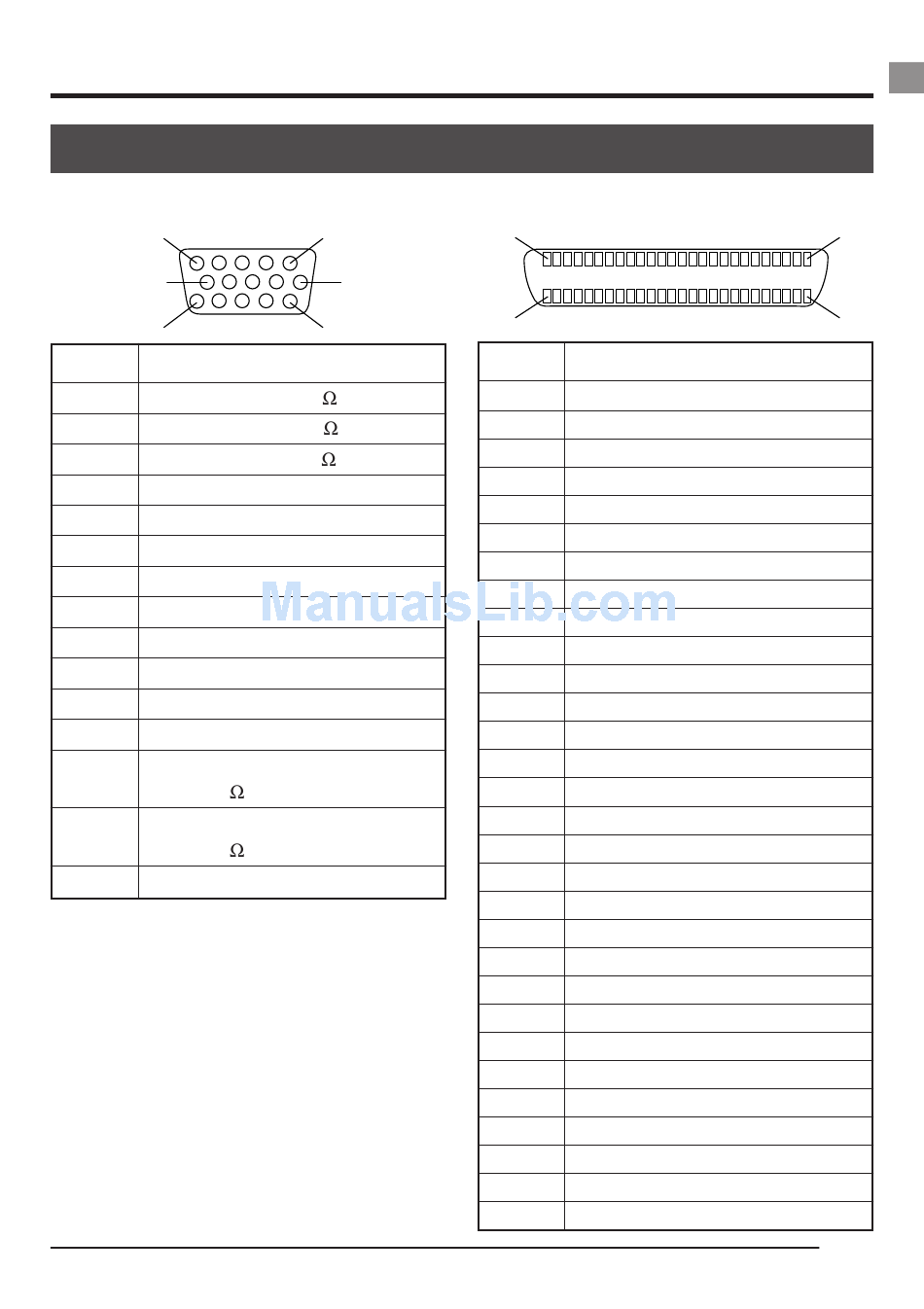

Monitor terminal (D-sub 15-pin, female)
5
10
15
Pin no.
1 R OUT 700mV, 75
2 G OUT 700mV, 75
3 B OUT 700mV, 75
4 GND
5 NC
6 R GND
7 G GND
8 B GND
9 NC
10 GND
11 GND
12 NC
13 Hs (3V(p-p) negative polarity
Zo=100 )
14 Vs (3V(p-p) negative polarity
Zo=100 )
15 NC
1
6
11
Signal name
SCSI terminal (Half-pitch 50-pin, female)
25
50
Pin no.
1 ~ 11 GND
12 GND
13 NC
14 GND
15 ~ 25 GND
26 DB 0
27 DB 1
28 DB 2
29 DB 3
30 DB 4
31 DB 5
32 DB 6
33 DB 7
34 DBP
35 GND
36 GND
37 GND
38 VC +5 (input only)
39 GND
40 GND
41 ATN
42 GND
43 BSY
44 ACK
45 RST
46 MSG
47 SEL
48 CD
49 REQ
50 I/O
Signal name
1
26
