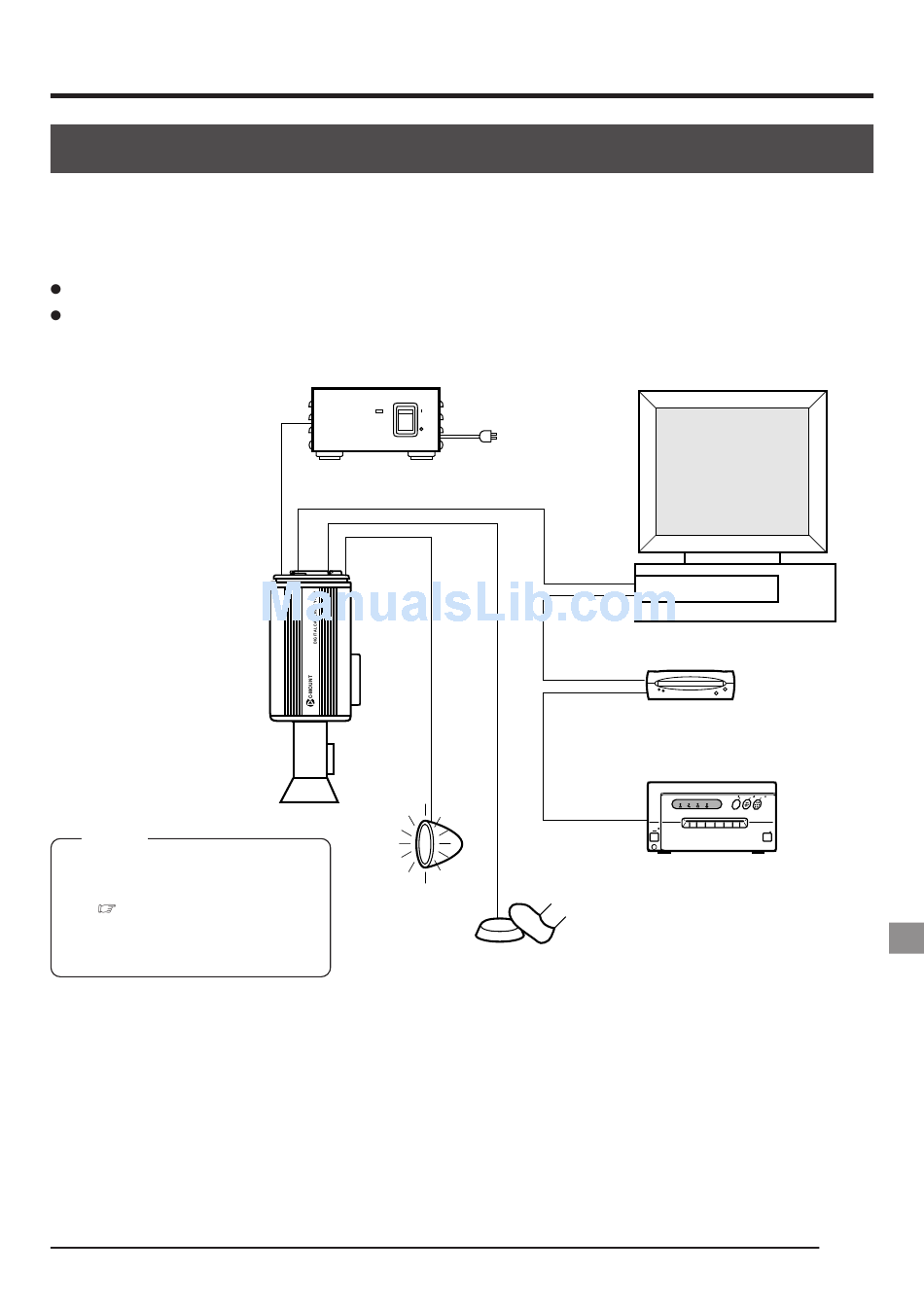

Compatible systems 2

It is possible to process SXGA compatible images of this unit directly on a PC using a capture
board. Images can be processed while viewing still images and camera video of this unit on a
PC monitor.
Images can be checked on a SXGA monitor when using an SXGA compatible capture board.
Images can be checked on a VGA monitor when using a VGA compatible capture board.
MEMO
• Set the SCSI ID dip switch of
the main unit to other than 7
( page 24).
• Do not use identical IDs for
the setting ID.
* For this system, the attached camera remote control software must be installed to the PC. For
details, see the attached instructions of the software.
AA-P700
AC ADAPTER AA-P700
POWER
ON
OFF
AC adapter
Analog RGB, WEN, Hs, Vs, RS-232C
Flash
Freeze switch
AC
Capture board
MO disk drive
MITSUBISHI
CP700DSA
PAPER FEED & CUT COPY ONLINE
ALARM SHEET PAPER DATA
POWER
OPEN
Printer
E65
