2. Before recording (continued)

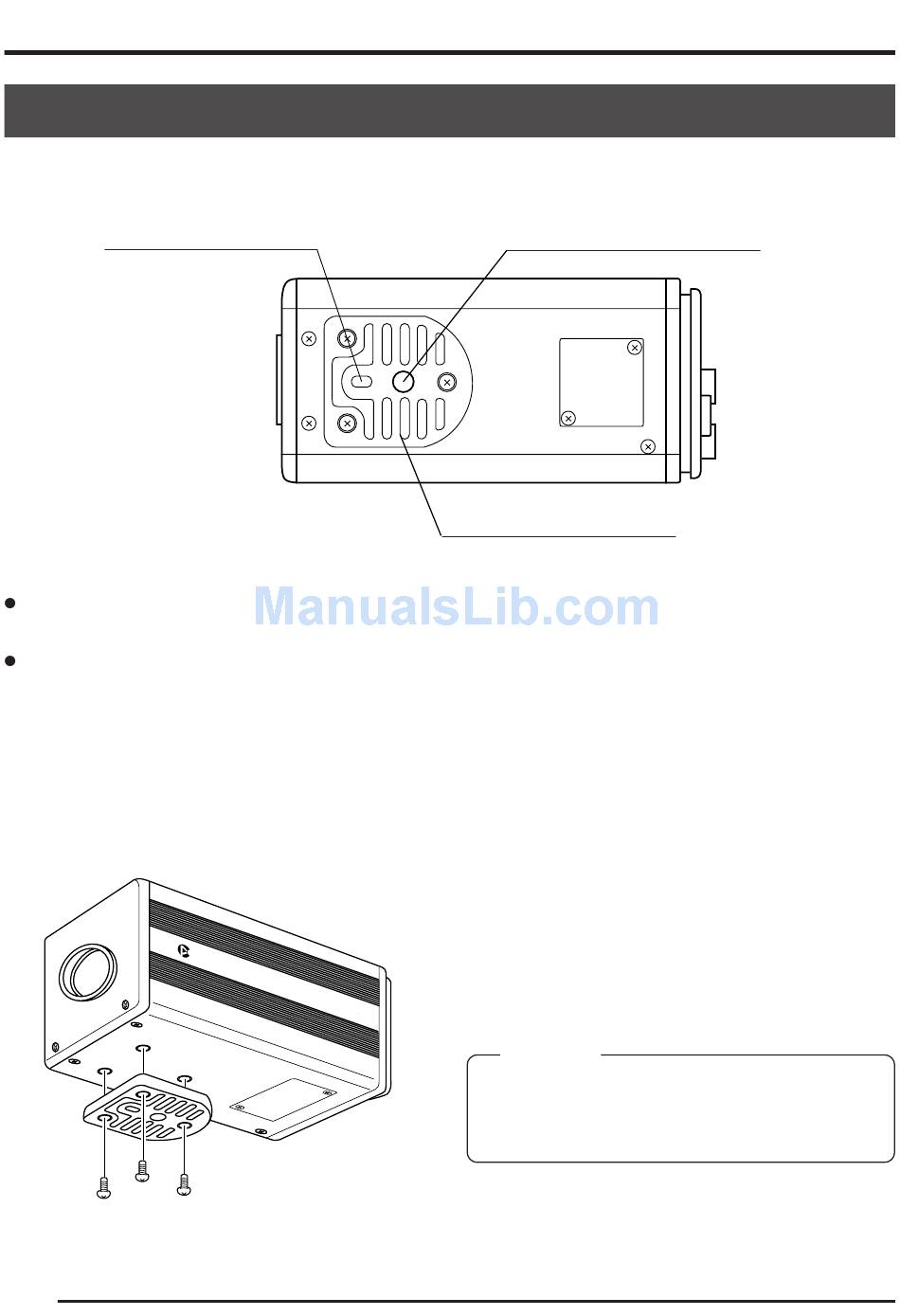

Mounting the camera

< Mounting method >
Rotation prevention hole
@ @ @ @ @ @
When mounting the camera, use the camera mount screw hole located on the camera mount-
ing bracket.
When mounting the camera, use the rotation prevention hole to prevent the unit from falling
and securely mount the unit.
< Changing the camera mounting bracket position >
E22
C - M
O U
N T
D I G
I T A
L
C A M
E R A
K Y -
F 7 0
Camera mounting screw hole
Camera mounting bracket
When shipped, the camera mounting bracket
is mounted on the bottom of the unit. To mount
it on the top of the unit, simply remove the 3
locking screws holding the camera mounting
bracket.
CAUTION
Always use the screws mounted on the main
unit. Using screws that exceed 6mm in length
may result in damage to the unit.
