6. Menu screen settings (continued)

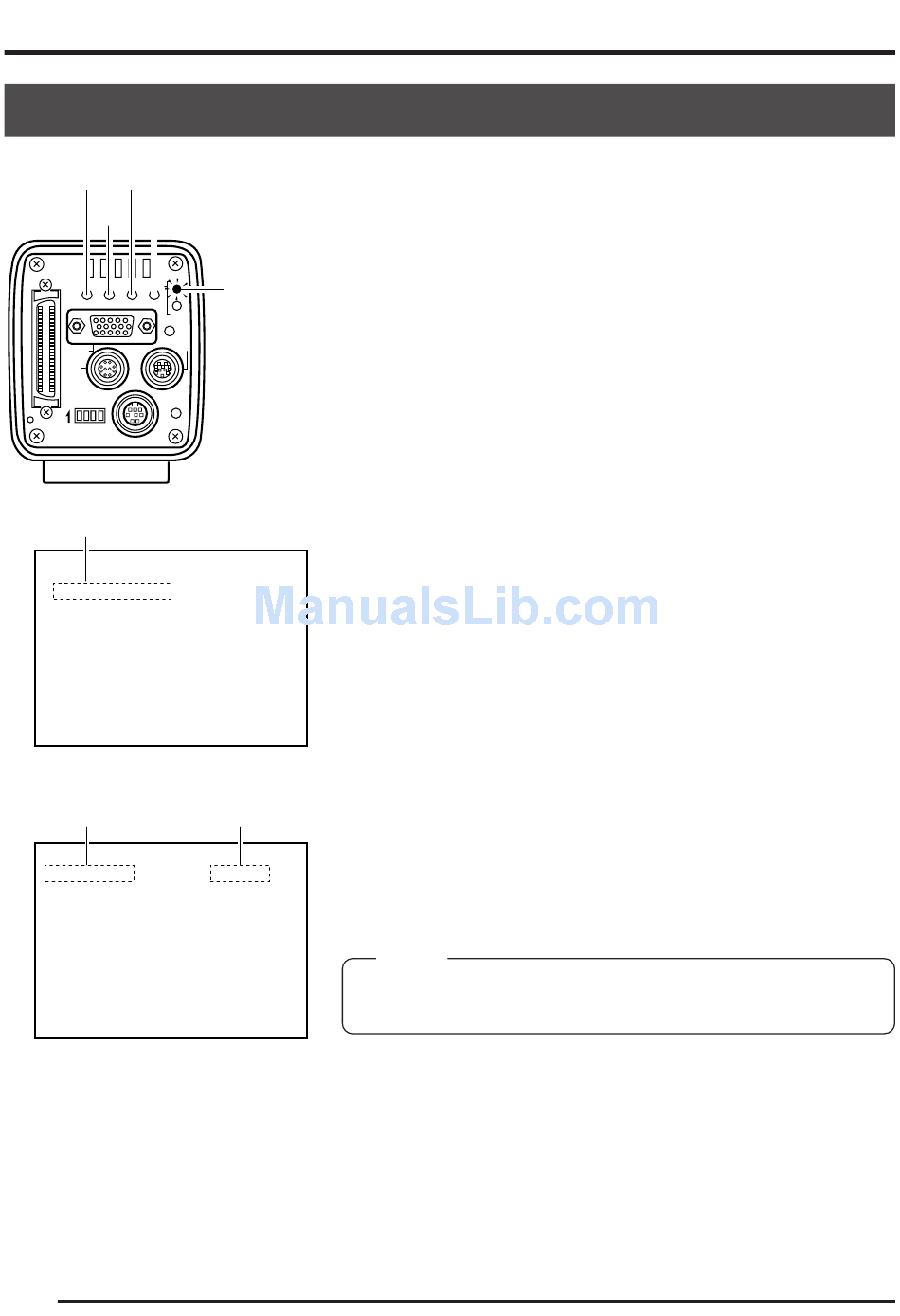

Setting procedure

MENU
DOWN
UP
MODE/SET
SCSI
REC
SEND
AW/SEL
MODE
MENU
UP
DOWN
SET
PLAY
FREEZE
LENS
MONITOR
@ @ @ @ @ @
REMOTE
DC IN
POWER
ON 1 2 3 4
SEE INSTRUCTION MANUAL
Menu item
- - -
REC
MENU - - -
1 : EXPOSURE . .
2 : WH I TE BA L ANCE . .
3 : FREEZE . .
4 : PROCESS . .
5 : SYSTEM SET T I NG . .
REC normal menu screen
Menu item
- - -
EXPOSURE
I R I S MODE
AE L EVE L
I R I S L EVEL
I R I S DETECT
I R I S AREA
SHUT TER
SPEED
SENCET I V
I TY
L EVE L
A LC MAX
Submenu screen (example)
EXPOSURE menu
E46
REC normal menu screen
1.
REC LED
2.
3.
4.
Set value
- - -
:
AUTO
:
0
: 1 2 8
: NORM
A L
: FU L L
: ST EP
: 1 / 8
: ST E
P
Pressing the MENU button at this time will return the setting to
: I SO
1
0 0
the previous value without making changes.
: I SO
4 0 0
5.
Press the MODE button to enter the REC mode (REC
LED on), then press and hold the MENU for at least 2
seconds to display the REC normal menu screen. (If
the MENU button is not pressed long enough, the REC
mode quick menu will appear. In this case, press the
MENU button to return to the normal screen, then press
and hold the MENU button for at least 2 seconds.)
Press the UP or DOWN button to select a menu item
(the menu item will be displayed in purple when se-
lected), then press the SET button to display the
submenu screen.
In the submenu screen, press the UP or DOWN button
in the same manner as above to select a submenu item,
then press the SET button.
The set value will be displayed in purple, indicating that
it can be changed.
Use the UP and DOWN buttons to change to set value,
then press the SET button to confirm (the set value will
return to white).
Pressing the UP or DOWN button increments the set
value in unit of 10. Use this feature when making large
changes in value.
MEMO
Press the MENU button to return to the menu screen.
