3. Settings and adjustments for recording (continued)

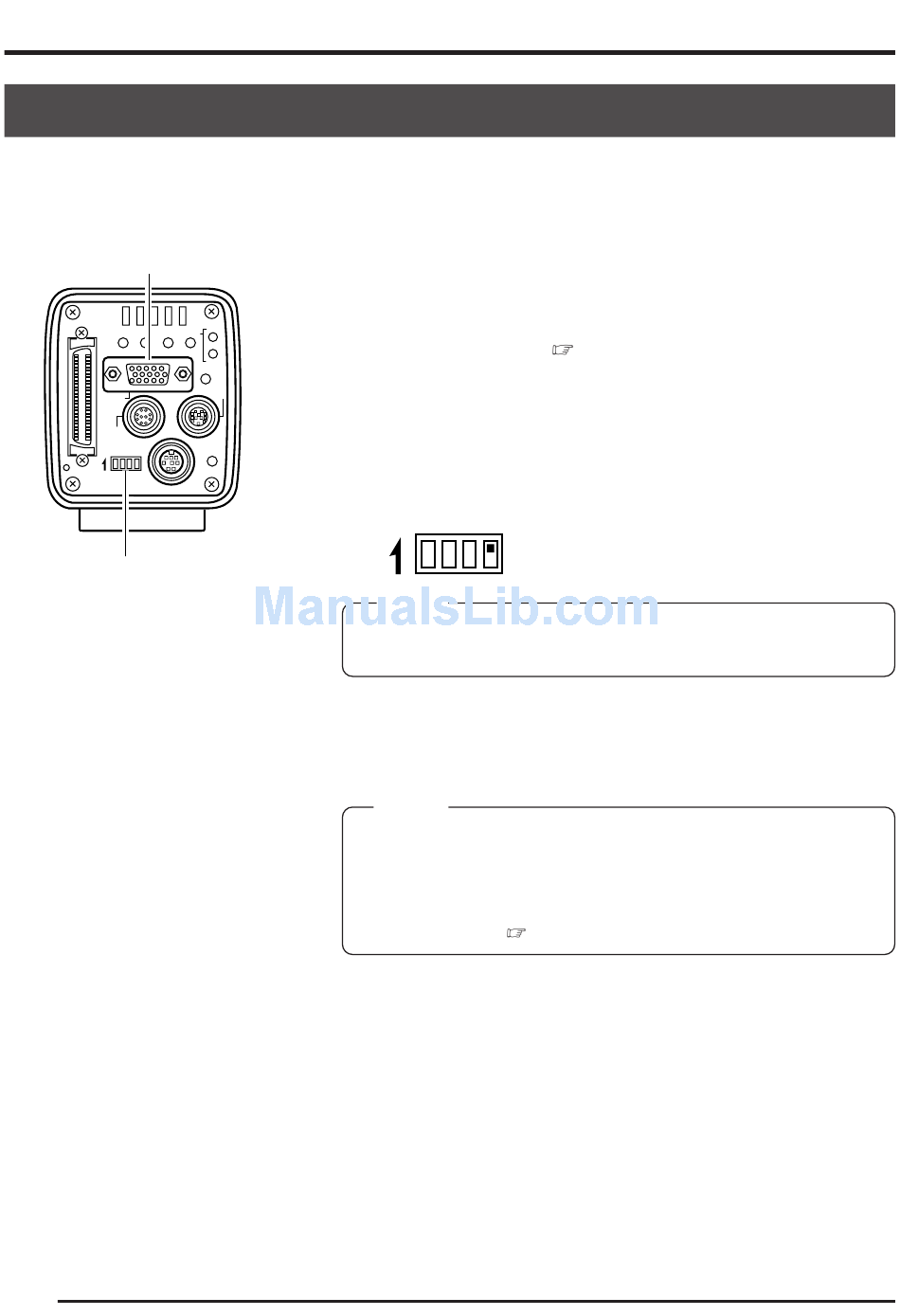

Monitor adjustment

The color contrast, brightness, etc. are adjusted by sending built-in color bar signals of the main
unit to the PC monitor.
MONITOR terminal
SCSI
SEND AW/SEL
MENU UP DOWN
@ @ @ @ @ @
MONITOR
REMOTE
DC IN
ON 1 2 3 4
SEE INSTRUCTION MANUAL
Dip switches
E28
1.
REC
MODE
SET
PLAY
FREEZE
2.
LENS
3.
POWER
4.
5.
6.
Depending on the system, set the MONITOR mode to
VGA or SXGA.
(Set using the main unit dip switches)
Monitor settings (
Connect the monitor and MONITOR terminal.
Set dip switches 3 and 4 on the rear of the main unit to
ON.
ON 1 2 3 4
MEMO
Turn the power off before setting the dip switches. Setting the
switches with the power on will not change the settings.
Turn the main unit power on.
Adjust the video monitor.
MEMO
• For the adjustment method, see the instruction manual of
the video monitor.
• The peak level of the color bar is et to 0.7V. To change the
setting to 0.58V, select BAR LEVEL in the SYSTEM SET-
TING screen ( Page 58).
When completed, turn off the system power., then set
dip switch 4 to OFF.
page 24)
