Connecting a printer

It is possible to directly output image data stored in the main unit memory to a printer. (
37 Outputting images from the memory to a printer)
PAPER
ALARM SHEET
POWER

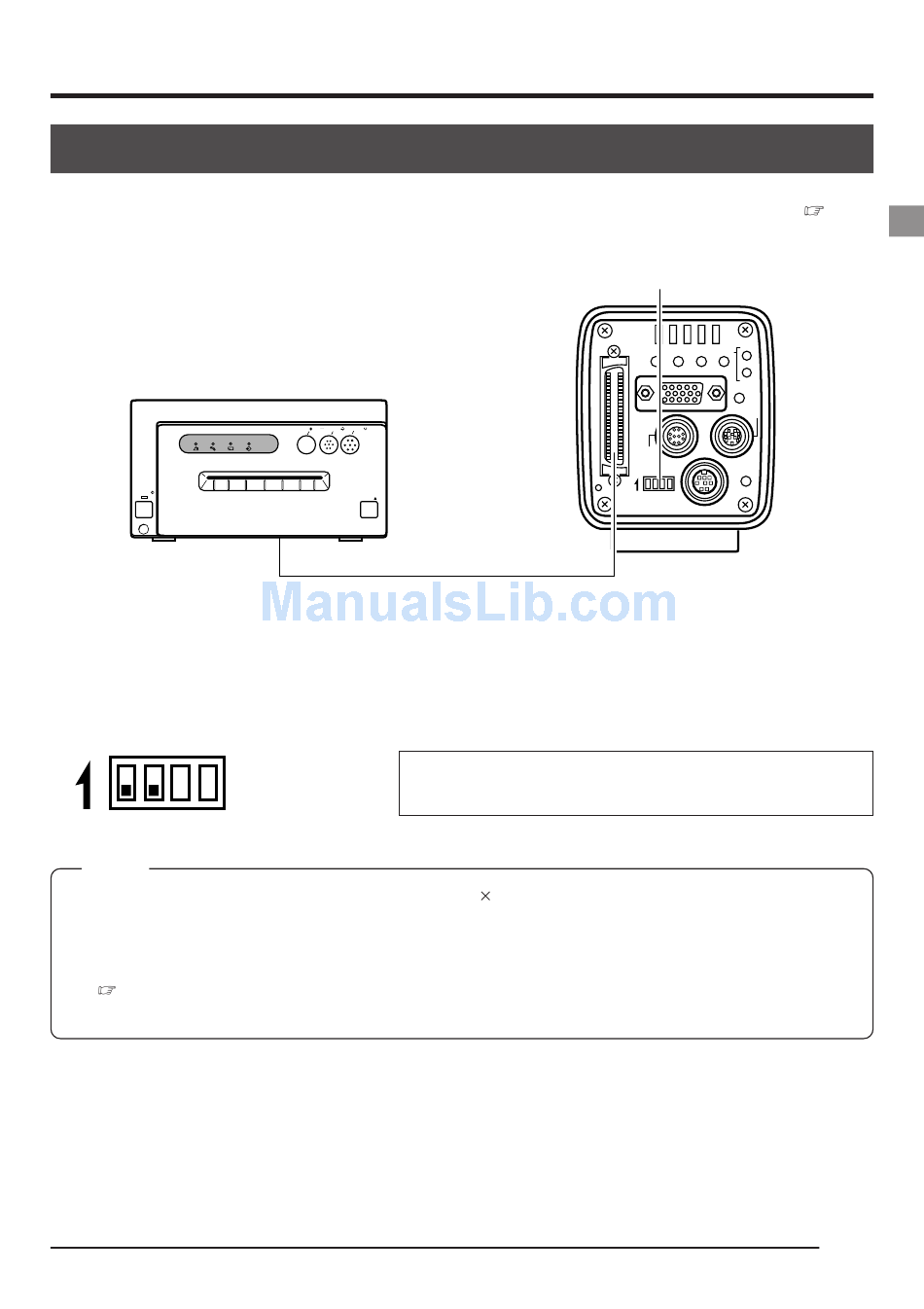

When directly connecting the main unit to a printer, set the dip switches on the rear of the main
unit as shown below.
ON 1 2 3 4
MEMO
• The image data outputted to a printer will be 1360
use is VGA or SXGA, or whether the VGA mode is set to FINE or DRAFT.
• The maximum allowed length of the SCSI cable is 3m.
• When connecting an MO drive to a PC, separate setting of the SCSI ID is required.
( Page 64 7. Connecting to a PC)
• It is not possible to simultaneously output the image data to a printer and MO drive.
